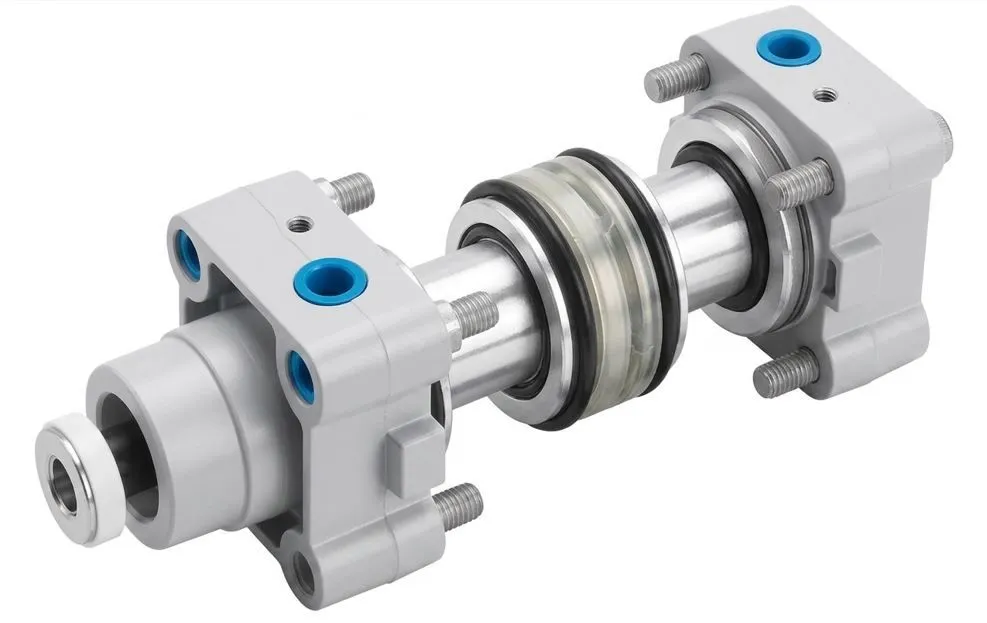

The AIRMIXS DNC-63-PPV-A is a heavy-duty double-acting standard pneumatic cylinder engineered in accordance with ISO 15552 / VDMA 24562 standards. Featuring a 63 mm bore and modular stroke options, this profile cylinder delivers strong thrust and pull forces, making it ideal for demanding industrial automation, material handling, and heavy-duty pressing applications.
Equipped with adjustable pneumatic cushioning at both end positions (PPV) for optimal shock absorption and an integrated magnetic piston (A) for non-contact stroke position feedback, it ensures long service life, smooth linear actuation, and precise system integration.
Specification / Feature | Value / Details |
|---|
Brand | AIRMIXS |
Part Number | DNC-63-PPV-A |
Cylinder Type | ISO Standard Profile Pneumatic Cylinder |
Standard | ISO 15552 / VDMA 24562 |
Mode of Operation | Double-acting |
Bore Size (Piston Diameter) | 63 mm |
Piston Rod End Thread | Male Thread (M16x1.5) |
Operating Pressure | 0.6 ... 10.0 bar (0.06 ... 1.0 MPa) |
Operating Medium | Compressed air (filtered, lubricated or non-lubricated) |
Cushioning | Adjustable pneumatic cushioning at both ends (PPV) |
Position Detection | Magnetic piston for proximity sensor detection (A) |
Theoretical Force at 6 bar (Advance) | ~1870 N |
Theoretical Force at 6 bar (Retract) | ~1682 N |
Pneumatic Port Connection | G 3/8" |
Mounting Options | Foot mounting, flange mounting, swivel clevis, or trunnion mounts |
Ambient Operating Temperature | -20°C to +80°C |
