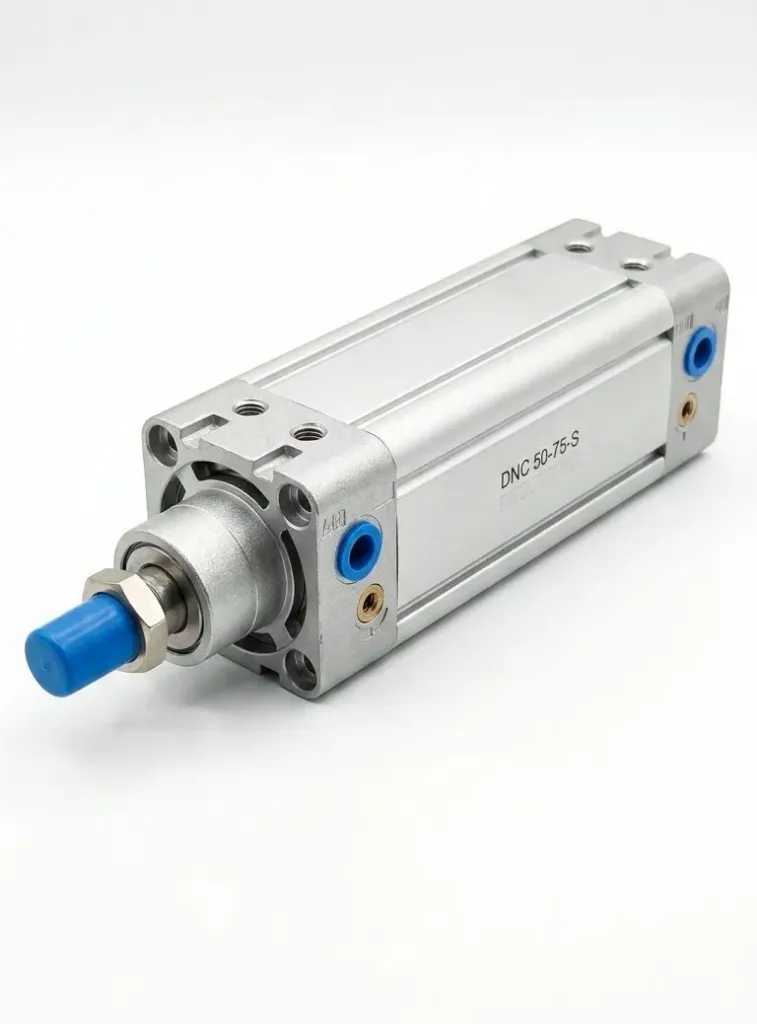

The DNC 50-75-S is a high-power, double-acting pneumatic cylinder built to ISO 15552 international standards. With a 50mm bore and 75mm stroke, this actuator is designed for industrial applications that require reliable linear motion and high force output.
This model features a magnetic piston ("S"), enabling precise position sensing through integrated T-slots in the profile barrel. To ensure a long service life and protect your machinery, it is equipped with adjustable pneumatic cushioning at both ends, allowing you to fine-tune the deceleration of the piston for smooth, vibration-free operation.
Feature | Specification |
|---|
Bore Diameter | 50 mm |
Stroke Length | 75 mm |
Standard | ISO 15552 (VDMA 24562) |
Mode of Operation | Double-acting |
Cushioning | Adjustable pneumatic cushioning at both ends |
Operating Pressure | 0.6 bar to 12 bar (0.06 MPa to 1.2 MPa) |
Ambient Temperature | -20°C to 80°C |
Theoretical Force (6 bar) | Advance: 1178 N / Return: 990 N |
Pneumatic Connection | G 1/4 |
Piston Rod Thread | M16 x 1.5 (External thread) |
Position Detection | Magnetic piston for proximity sensors |
Material (Barrel) | Anodized wrought aluminum alloy |
Material (Piston Rod) | High-alloy steel, chrome-plated |
Material (Seals) | TPE-U (PU) / NBR |
