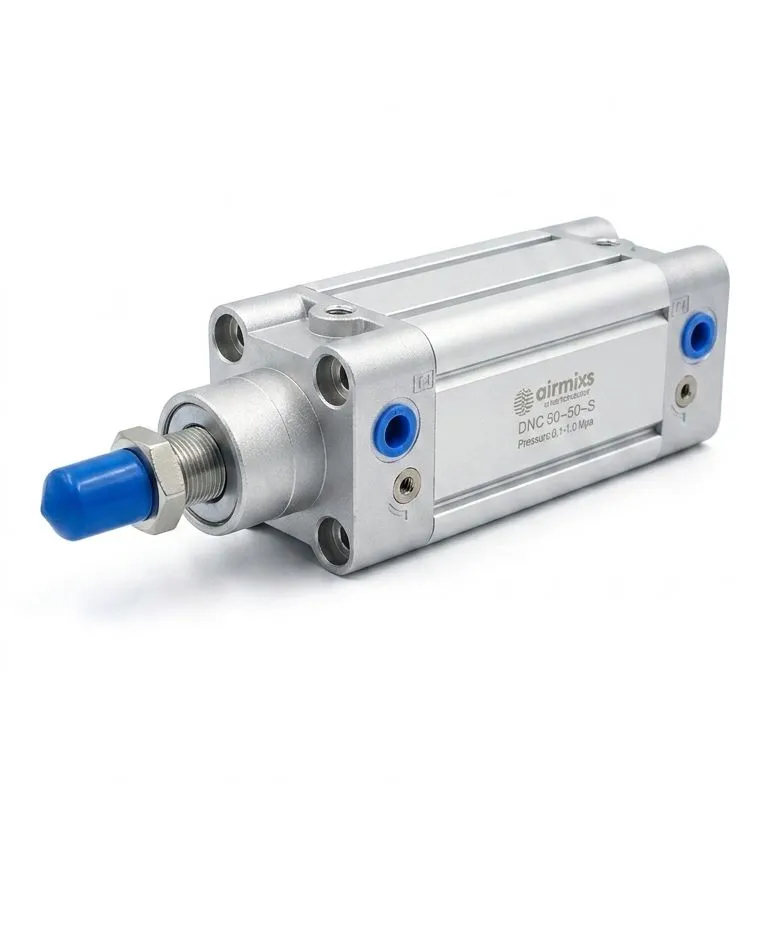

The DNC 50-50-S is a robust, double-acting pneumatic cylinder built to ISO 15552 (formerly ISO 6431) standards. This 50mm bore, 50mm stroke actuator is designed for industrial applications requiring high force and reliable linear motion.
Equipped with a magnetic piston ("S") for electronic position sensing and adjustable pneumatic cushioning, this cylinder ensures smooth operation and long service life. Its square profile barrel features integrated T-slots, making sensor mounting clean and simple without the need for additional brackets.
Feature | Specification |
|---|
Bore Diameter | 50 mm |
Stroke Length | 50 mm |
Standard | ISO 15552 (VDMA 24562) |
Mode of Operation | Double-acting |
Cushioning | Adjustable pneumatic cushioning at both ends |
Piston Rod Thread | M16 x 1.5 (External thread) |
Pneumatic Connection | G 1/4 |
Operating Pressure | 0.6 bar to 12 bar (0.06 MPa to 1.2 MPa) |
Ambient Temperature | -20°C to 80°C |
Theoretical Force (6 bar) | Advance: 1178 N / Return: 990 N |
Position Detection | Magnetic piston for proximity sensors |
Material (Barrel) | Smooth anodized wrought aluminum alloy |
Material (Piston Rod) | High-alloy steel, chrome-plated |
Material (Seals) | TPE-U(PU) / NBR |
