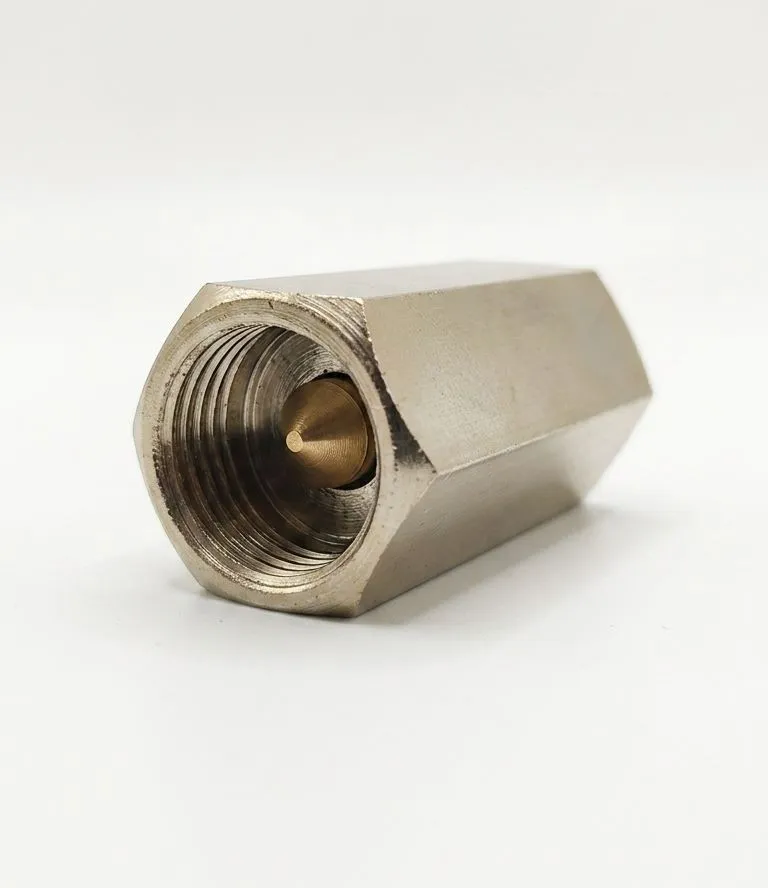

The CV03 Inline Check Valve (Non-Return Valve) is engineered to maintain unidirectional flow and prevent reverse flow in medium-to-high flow pneumatic systems. Designed with 3/8" Female PT / NPT / BSPT thread ports on both ends, it provides an airtight inline barrier for compressed air circuits, air distribution manifolds, and industrial machinery.
Constructed with a durable nickel-plated brass body and a spring-loaded internal mechanism with NBR rubber seals, the CV03 delivers quick shutoff when backpressure occurs. Its corrosion-resistant build prevents system pressure drops and protects sensitive upstream equipment against backflow.
Property | Technical Specification |
|---|
Model Code | CV03 (CV-03 / CV-3/8) |
Product Type | Inline Non-Return Check Valve (Single Way) |
Port Size / Thread | 3/8" Female Thread (PT / NPT / BSPT / G) |
Fluid Compatibility | Compressed Air, Industrial Vacuum, Water, Non-Corrosive Liquids |
Operating Pressure Range | 0.05 to 1.0 MPa (0.5 to 10 bar / ~7 to 145 PSI) |
Cracking Pressure | ≤ 0.02 MPa (~3 PSI / 0.2 bar) |
Proof / Maximum Pressure | 1.5 MPa to 1.6 MPa (~215 to 232 PSI) |
Operating Temperature | -5°C to +70°C (23°F to 158°F) |
Body Material | Nickel-Plated Brass (HPb59-1) |
Internal Spring Material | Stainless Steel (SUS 304) |
Seals | NBR (Nitrile Rubber) O-Ring |
Flow Direction | Unidirectional (Directional arrow marked on valve body) |
