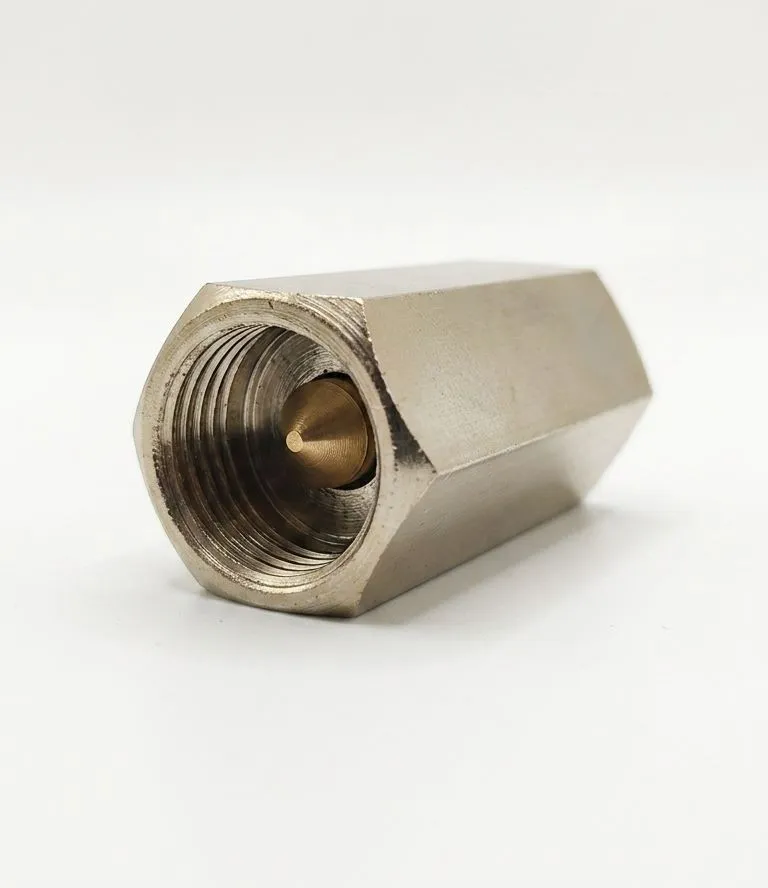

The CV02 Inline Check Valve (Non-Return Valve) is designed to ensure strict unidirectional flow and prevent backflow in pneumatic and low-pressure fluid setups. Equipped with 1/4" Female PT / NPT / BSPT threaded ports on both ends, this valve fits seamlessly into standard air distribution lines, compressor connections, and automation manifolds.
Featuring a durable nickel-plated brass body and a spring-loaded sealing mechanism with NBR rubber seals, the CV02 provides instant shutoff when backpressure occurs. Its robust structure offers high resistance to wear and corrosion while maintaining optimal system pressure without flow restriction.
Property | Technical Specification |
|---|
Model Code | CV02 (CV-02 / CV-1/4) |
Product Type | Inline Non-Return Check Valve (Single Way) |
Port Size / Thread | 1/4" Female Thread (PT / NPT / BSPT / G) |
Fluid Compatibility | Compressed Air, Vacuum, Water, Non-Corrosive Gas |
Operating Pressure Range | 0.05 to 1.0 MPa (0.5 to 10 bar / ~7 to 145 PSI) |
Cracking Pressure | ≤ 0.02 MPa (~3 PSI / 0.2 bar) |
Proof / Maximum Pressure | 1.5 MPa to 1.6 MPa (~215 to 232 PSI) |
Operating Temperature | 0°C to +80°C (32°F to 176°F) |
Body Material | Nickel-Plated Brass (HPb59-1) |
Internal Spring Material | Stainless Steel (SUS 304) |
Seals | NBR (Nitrile Rubber) O-Ring |
Flow Direction | Unidirectional (Directional arrow marked on valve body) |
