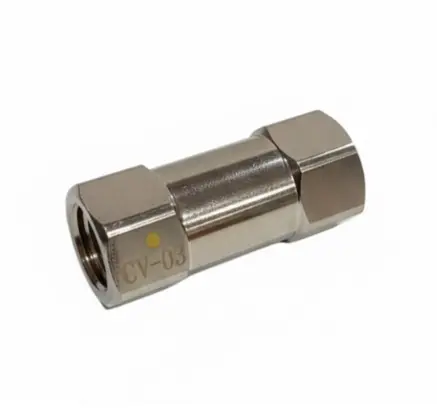

The CV-03 Check Valve is a critical "non-return" component for any professional pneumatic installation. Designed with a high-durability metal housing, this valve ensures that air only moves toward your intended tools or actuators, preventing dangerous back-pressure that can cause system failure or mechanical damage.
Feature | Specification |
|---|
Model | CV-03 |
Port Size | 3/8" G |
Valve Type | One-Way Check Valve (Non-Return) |
Working Medium | Compressed Air / Inert Gas |
Operating Pressure | 0.05 – 1.0 MPa (7.2 – 145 PSI) |
Proof Pressure | 1.5 MPa (217 PSI) |
Cracking Pressure | $\le 0.05$MPa |
Operating Temp | -5°C to 60°C |
Body Material | Nickel-Plated Brass / Zinc Alloy |
