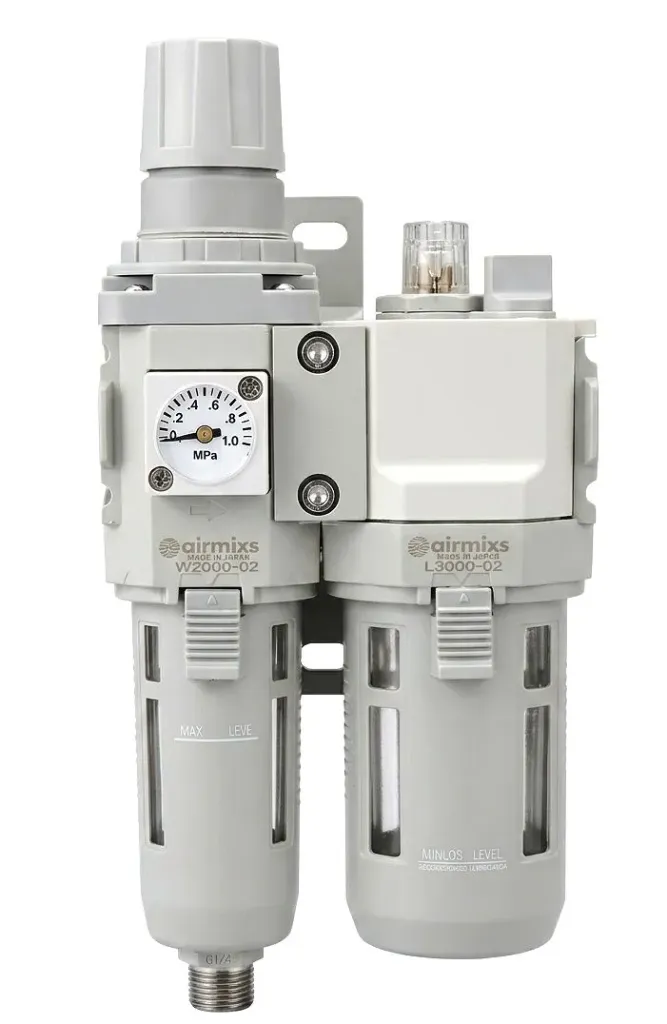

The AIRMIXS C20102-G1/4 is a high-performance, modular air preparation assembly designed to ensure the delivery of clean, dry, and lubricated compressed air to industrial pneumatic systems. This dual-unit configuration integrates a high-efficiency filter-regulator (W2000-02) with a precision mist lubricator (L3000-02), providing full control over air quality and pressure in a space-optimized design.
Built for reliability, the unit features a high-visibility square pressure gauge and transparent bowls with protective metal guards, allowing operators to safely monitor fluid levels and system pressure at a glance. The C20102-G1/4 is the ideal solution for protecting sensitive air tools, valves, and cylinders from contaminants while extending their operational life through consistent lubrication.
Feature | Specification |
|---|
Model | C20102-G1/4 |
Integrated Components | Filter-Regulator (W2000-02) + Lubricator (L3000-02) |
Port Size | G 1/4" |
Filtration Rating | 5 $\mu$m (Standard) |
Pressure Adjustment Range | 0.05 – 0.85 MPa (7.25 – 123 psi) |
Max. Supply Pressure | 1.0 MPa (145 psi) |
Operating Temperature | 5°C to 60°C |
Drain Type | Semi-Auto / Manual Drain |
Bowl Material | Polycarbonate with high-strength protective guard |
