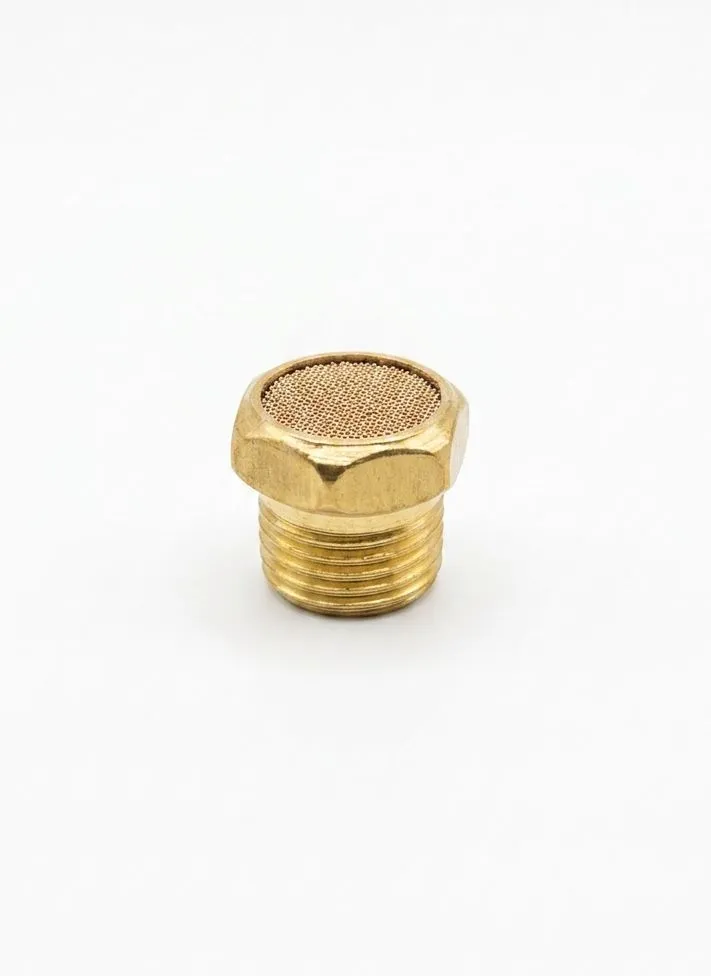

Reduce operational noise and protect your pneumatic equipment with the AIRMIXS BSLM02. This compact, low-profile sintered bronze silencer is designed to diffuse compressed air exhaust directly from the exhaust ports of pneumatic valves, cylinders, and air manifolds. By effectively scattering venting air, it subdues high-frequency decibel levels to keep work environments comfortable and compliant with safety standards.
Engineered with a durable, solid brass hex base, it can be effortlessly installed or removed using a standard wrench in incredibly tight spaces. The porous sintered bronze element also serves as an effective barrier, preventing dust, metal particles, debris, and contaminants from entering the valve's internal chambers during cyclical intake phases.
Attribute | Specification |
|---|
Brand | AIRMIXS |
Model / Part Number | BSLM02 (BSLM Series) |
Component Type | Low-Profile Hex Silencer / Vent Muffler |
Thread Connection | 1/4" Male NPT / BSPT |
Base Hex Nut Material | Solid Brass (Copper Alloy) |
Filter Element Material | Porous Sintered Bronze |
Applicable Media | Compressed Air, Exhaust Gas, Inert Gases |
Maximum Operating Pressure | 0 to 150 PSI (0 to 1.0 MPa / 10 bar) |
Filtering Efficiency | 40 Micron nominal |
Noise Reduction Level | Up to 20–25 dB(A) reduction |
Operating Temperature | 14°F to 300°F (-10°C to 150°C) |
Body Profile | Ultra-Compact Hexagonal Head |
