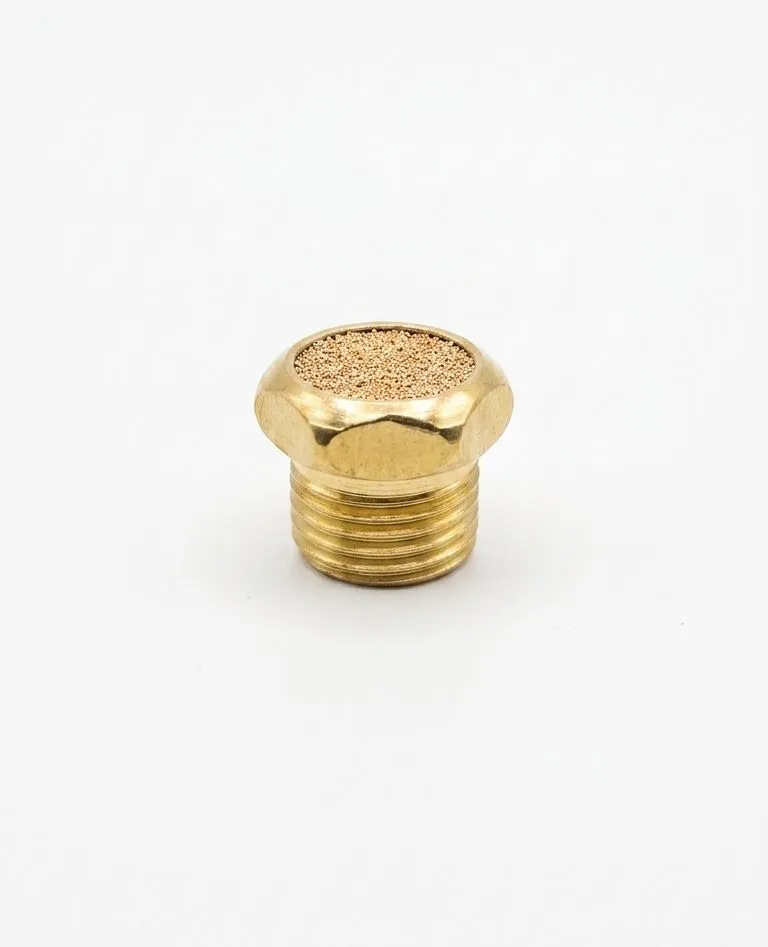

The BSLM01 Mini Flat Pneumatic Silencer is a compact, low-profile exhaust muffler designed to reduce air release noise and safely diffuse exhaust in space-restricted pneumatic equipment. Featuring a male 1/8" thread (PT / BSPT / NPT / G), it threads directly into the exhaust ports of directional control valves, compact air cylinders, solenoid valves, and manifold blocks.
Constructed with a heavy-duty nickel-plated brass base and a high-efficiency sintered bronze core, the BSLM01 provides reliable noise reduction without creating excessive backpressure in system lines. Its mini flat-head design also protects sensitive internal components from environmental contaminants, dust, and debris ingress.
Property | Technical Specification |
|---|
Model Code | BSLM01 (BSLM-01 / BSLM-1/8) |
Product Type | Mini Flat-Head Exhaust Silencer / Pneumatic Muffler |
Connection Thread Size | 1/8" Male Thread (PT / BSPT / NPT / G) |
Fluid Compatibility | Compressed Air, Industrial Vacuum, Inert Gas |
Operating Pressure Range | 0 to 1.0 MPa (0 to 10 bar / 0 to ~145 PSI) |
Proof / Burst Pressure | 1.5 MPa (~215 PSI) |
Operating Temperature | -20°C to +70°C (-4°F to 158°F) |
Filtration Rating | 40 to 90 Microns |
Noise Reduction Level | ~13 to 20 dB attenuation |
Body Material | Nickel-Plated Brass (HPb59-1) / Stainless Steel |
Filter Core Material | Sintered Bronze / Copper Core |
