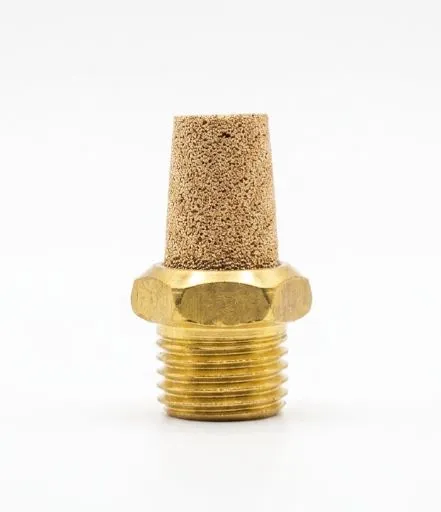

The BSL01 Standard Pneumatic Silencer is an essential exhaust muffler designed to reduce air release noise and safely diffuse exhaust pressure in industrial pneumatic systems. Featuring a male 1/8" thread (PT / BSPT / NPT / G), it threads directly into the exhaust ports of directional control valves, air cylinders, solenoids, and manifold blocks.
Constructed with a heavy-duty solid brass threaded base and a high-efficiency cone-shaped sintered bronze filter core, the BSL01 effectively dampens operational noise by diffusing airflow evenly. Its porous sintered structure also acts as a barrier to prevent dust, foreign particles, and environmental contaminants from entering internal valve components through the exhaust ports.
Property | Technical Specification |
|---|
Model Code | BSL01 (BSL-01 / BSL-1/8) |
Product Type | Standard Sintered Bronze Exhaust Silencer / Pneumatic Muffler |
Connection Thread Size | 1/8" Male Thread (PT / BSPT / NPT / G) |
Fluid Compatibility | Compressed Air, Industrial Vacuum, Inert Gas |
Operating Pressure Range | 0 to 1.0 MPa (0 to 10 bar / 0 to ~145 PSI) |
Proof / Burst Pressure | 1.5 MPa to 3.0 MPa (~215 to 435 PSI) |
Operating Temperature | -10°C to +80°C (14°F to 176°F) |
Filtration Rating | 40 to 90 Microns |
Noise Reduction Level | ~20 to 25 dB noise attenuation (Level: ≤ 75 dB) |
Body / Thread Base Material | Solid Brass |
Filter Core Material | High-Density Sintered Bronze / Copper Core |
