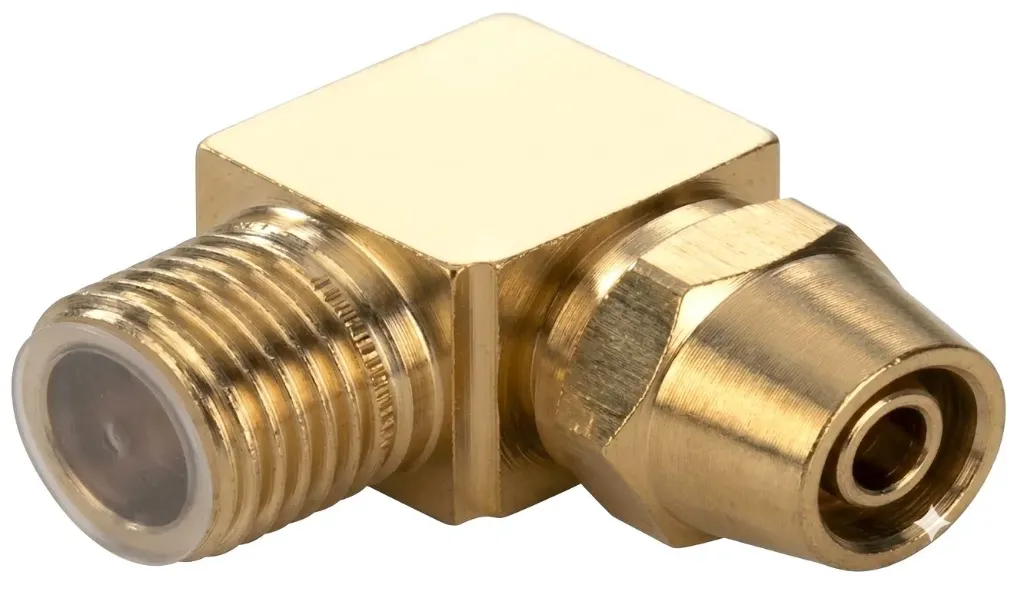

The BL8-03 is a heavy-duty 90° male elbow compression fitting built entirely from corrosion-resistant nickel-plated brass. Engineered for pneumatic, vacuum, and fluid handling systems, it connects an 8mm outer diameter tube to a 3/8" male thread port. The robust lock-nut compression mechanism delivers higher mechanical hold and pressure resistance than standard quick-connect fittings, preventing hose slippage under continuous line vibration or high-pressure surges.
Feature / Specification | Detail |
|---|
Model Code | BL8-03 |
Fitting Type | 90° Male Elbow Compression / Rapid Fitting |
Tube Outer Diameter (O.D.) | 8 mm |
Thread Connection | R 3/8" (BSPT) / PT 3/8" Male Thread |
Body Material | Nickel-Plated Brass |
Fluid Medium | Compressed Air, Vacuum, Water |
Operating Pressure | 0 to 1.5 MPa (0 – 15 bar / 215 PSI) |
Operating Temperature | -20°C to +80°C |
Compatible Tubing | Polyurethane (PU), Nylon (PA), Polyethylene (PE) |
