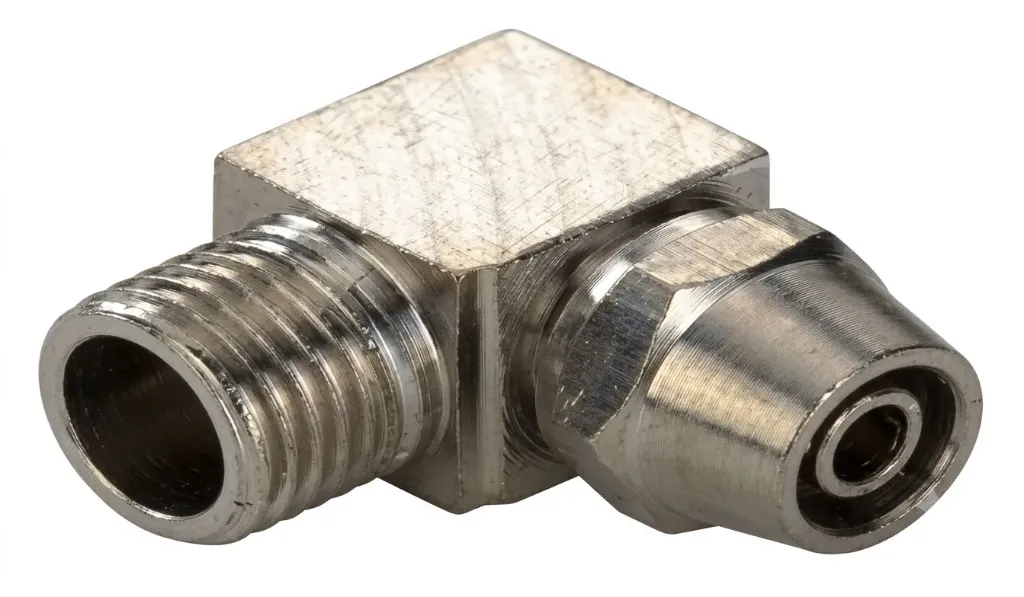

The BL8-02 is an industrial-grade 90° male elbow pneumatic compression fitting engineered for robust pneumatic and fluid distribution systems. Manufactured from high-quality nickel-plated brass, it connects an 8mm outer diameter tube to a standard 1/4" male thread port. Its mechanical lock-nut design provides superior tube retention compared to standard push-in fittings, making it ideal for high-pressure, high-vibration, or elevated temperature applications.
Feature / Specification | Detail |
|---|
Model Code | BL8-02 |
Fitting Type | 90° Male Elbow Compression / Rapid Fitting |
Tube Outer Diameter (O.D.) | 8 mm |
Thread Connection | R 1/4" (BSPT) / PT 1/4" Male Thread |
Body Material | Nickel-Plated Brass |
Fluid Medium | Compressed Air, Vacuum, Water |
Operating Pressure | 0 to 1.5 MPa (0 – 15 bar / 215 PSI) |
Operating Temperature | -20°C to +80°C |
Compatible Tubing | Polyurethane (PU), Nylon (PA), Polyethylene (PE) |
