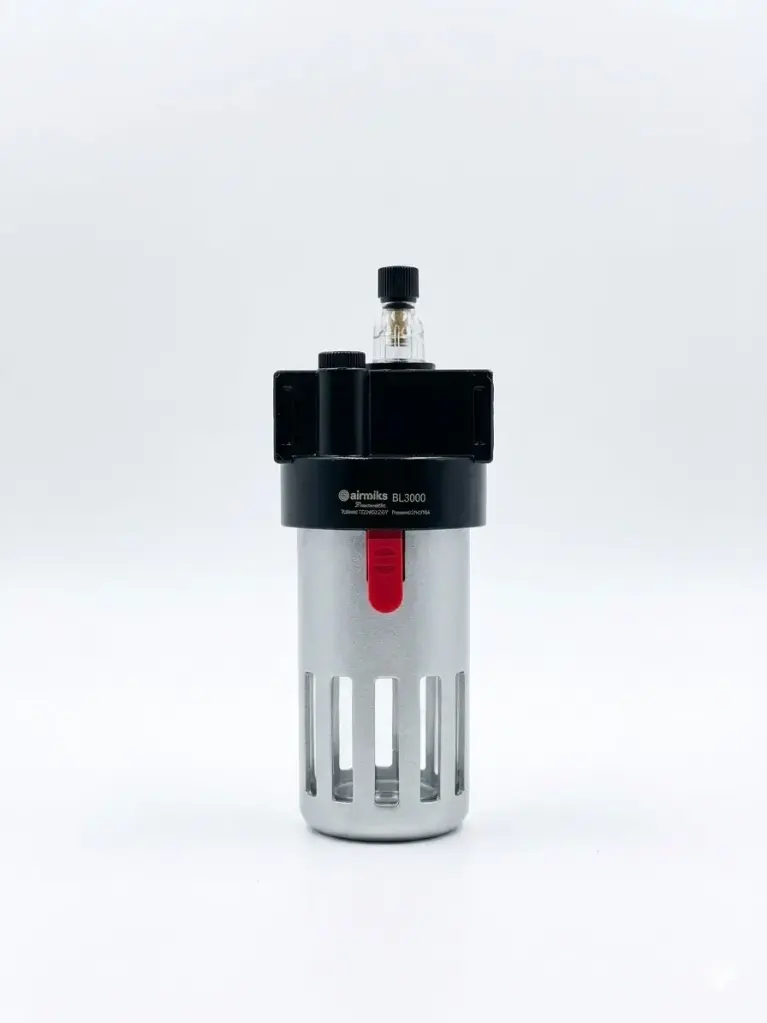

The AIRMIXS BL3000 is a mid-range pneumatic oil mist lubricator engineered to provide efficient, proportional lubrication to air-powered tools and machinery. Positioned between the compact 2000 series and the high-flow 4000 series, the BL3000 is the ideal choice for medium-duty industrial applications requiring a balance of compact design and significant flow capacity.
This model features a precision adjustment needle and a clear sight dome, allowing operators to monitor and control the oil drip rate with high accuracy. The high-strength polycarbonate bowl is encased in a slotted metal guard, providing a clear view of oil levels while offering robust protection against accidental impacts and harsh work environments.
Feature | Specification |
|---|
Model | BL3000 |
Brand | AIRMIXS |
Port Size | G3/8" (3/8 inch BSP) |
Fluid Medium | Compressed Air |
Pressure Range | 0.05 ~ 0.85 MPa (0.5-8.5 Bar) |
Max. Operating Pressure | 1.0 MPa (10 Bar / 145 PSI) |
Proof Pressure | 1.5 MPa (15 Bar) |
Operating Temp. | 5°C to 60°C |
Recommended Oil | ISO VG32 or equivalent turbine oil |
Bowl Material | Polycarbonate with Metal Protection Guard |
Body Material | Aluminum Die-Casting |
