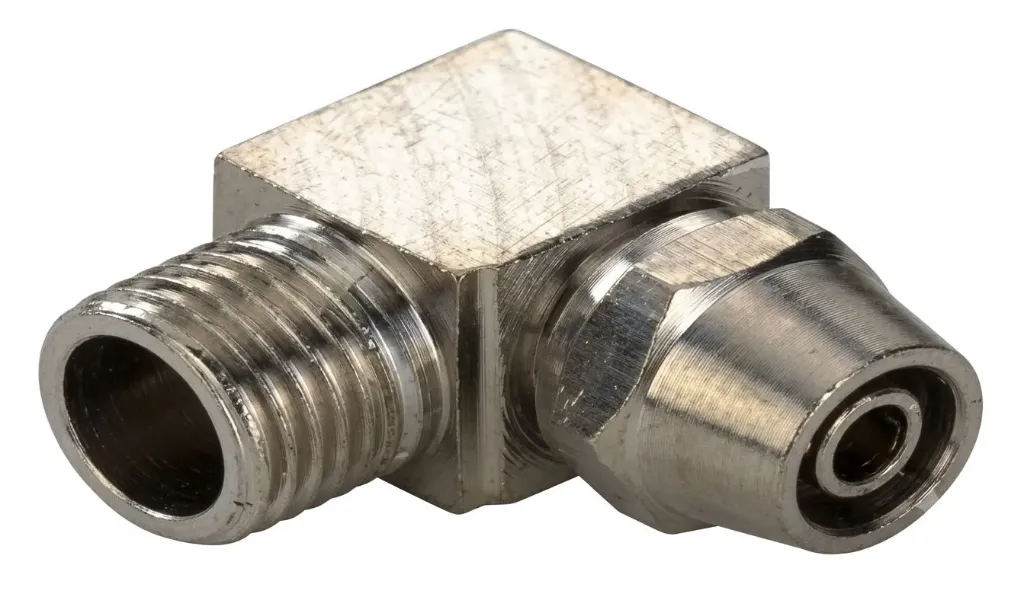

The BL10-04 is a heavy-duty 90° male elbow pneumatic compression fitting engineered from premium nickel-plated brass. Built for high-reliability industrial air, vacuum, and fluid routing, it bridges a 10mm outer diameter tube to a large 1/2" male thread port. Its mechanical lock-nut mechanism provides maximum mechanical retention, ensuring a reliable, leak-proof seal even under severe vibration or continuous high-pressure cycles.
Feature / Specification | Detail |
|---|
Model Code | BL10-04 |
Fitting Type | 90° Male Elbow Compression / Rapid Fitting |
Tube Outer Diameter (O.D.) | 10 mm |
Thread Connection | R 1/2" (BSPT) / PT 1/2" Male Thread |
Body Material | Nickel-Plated Brass |
Fluid Medium | Compressed Air, Vacuum, Water |
Operating Pressure | 0 to 1.5 MPa (0 – 15 bar / 215 PSI) |
Operating Temperature | -20°C to +80°C |
Compatible Tubing | Polyurethane (PU), Nylon (PA), Polyethylene (PE) |
