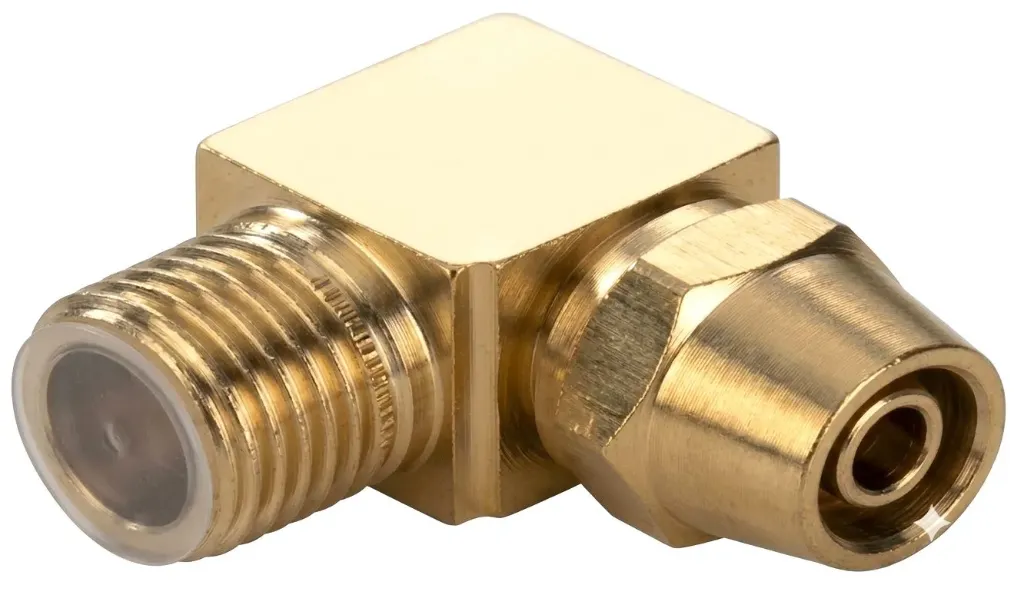

The BL10-01 is a heavy-duty 90° male elbow pneumatic compression fitting constructed from nickel-plated brass. Designed to connect a 10mm outer diameter tube to a 1/8" male thread port, it features a mechanical lock-nut mechanism that ensures a strong, leak-proof connection with plastic tubing (PU, Nylon, PE). Its solid metal construction provides high pressure stability and vibration resistance, making it an excellent choice for demanding pneumatic and industrial fluid control lines.
Feature / Specification | Detail |
|---|
Model Code | BL10-01 |
Fitting Type | 90° Male Elbow Compression / Rapid Fitting |
Tube Outer Diameter (O.D.) | 10 mm |
Thread Connection | R 1/8" (BSPT) / PT 1/8" Male Thread |
Body Material | Nickel-Plated Brass |
Fluid Medium | Compressed Air, Vacuum, Water |
Operating Pressure | 0 to 1.5 MPa (0 – 15 bar / 215 PSI) |
Operating Temperature | -20°C to +80°C |
Compatible Tubing | Polyurethane (PU), Nylon (PA), Polyethylene (PE) |
