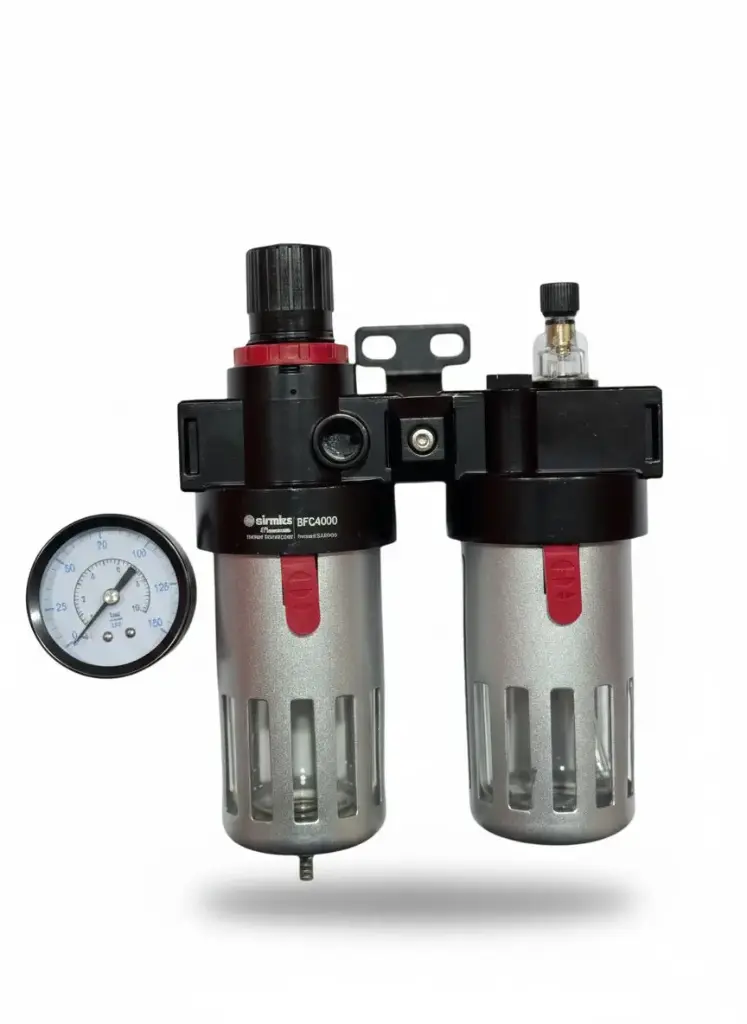

The AIRMIXS BFC4000 is a comprehensive 2-unit modular air preparation system designed to protect and optimize your pneumatic equipment. This unit combines three essential functions into one compact assembly: a high-efficiency filter to remove water and debris, a precision pressure regulator for consistent airflow, and a lubricator to provide a steady oil mist for downstream tools.
Featuring a 1/2" port size, it is built for industrial-grade applications. The unit includes transparent bowls with metal guards for easy monitoring of moisture levels and lubricant supply. Its modular design allows for easy installation and maintenance, ensuring your pneumatic system remains clean, dry, and properly lubricated.
Feature | Specification |
|---|
Model | BFC4000 |
Components | Filter-Regulator (BFR4000) + Lubricator (BL4000) |
Port Size | 1/2" G (Standard) |
Fluid | Compressed Air |
Filtering Grade | 40 $\mu$m (Standard) or 5 $\mu$m (Optional) |
Pressure Range | 0.05 – 0.9 MPa (7 – 130 psi) |
Max. Pressure | 1.0 MPa (145 psi) |
Proof Pressure | 1.5 MPa (215 psi) |
Temperature Range | -5°C to 70°C |
Drain Type | Manual or Semi-Auto Drain |
Bowl Capacity | Filter: 60 cc / Lubricator: 90 cc |
Materials | Aluminum Alloy Body, Polycarbonate (PC) Bowls |
