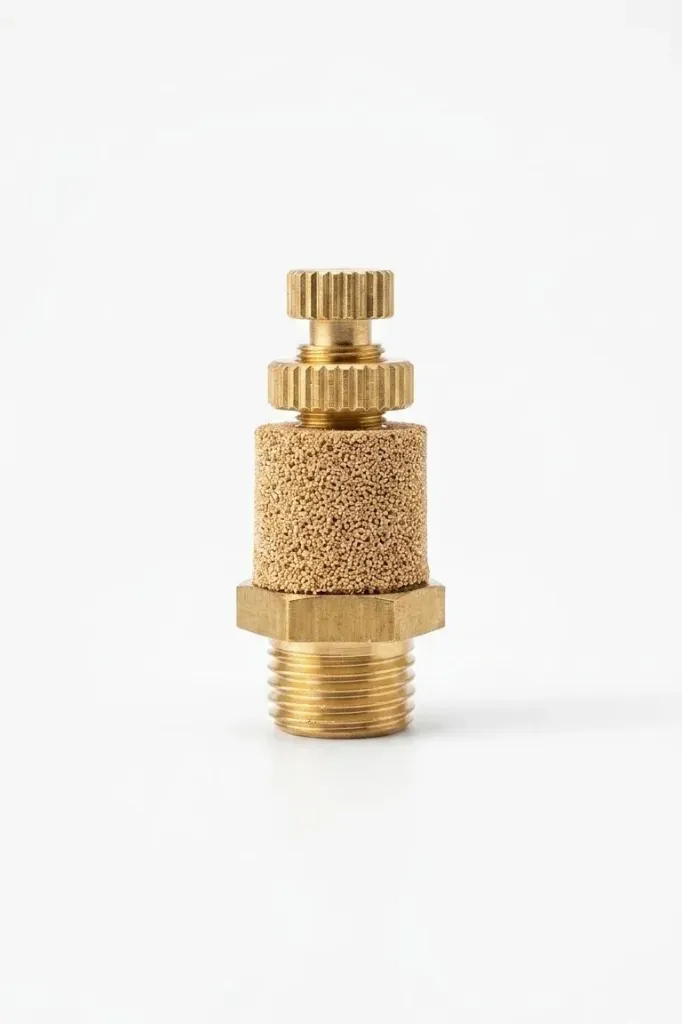

The BESL04 Speed Control Silencer is a heavy-duty, dual-function pneumatic accessory designed to reduce high-decibel exhaust noise while controlling air flow discharge. Featuring a male 1/2" thread (PT / BSPT / NPT), it screws directly into larger exhaust ports on pneumatic control valves, air cylinders, solenoids, and pneumatic tools.
Constructed with a heavy-duty brass base and a porous sintered bronze filter element, the BESL04 includes an integrated brass adjustment screw and hex locknut. This mechanism allows operators to fine-tune exhaust airflow—effectively acting as a speed controller for connected cylinders—while filtering out dust and particulates from entering the valve assembly.
Property | Technical Specification |
|---|
Model Code | BESL04 (BESL-04 / BESL-1/2) |
Product Type | Adjustable Throttling Silencer / Flow Control Muffler |
Connection Thread Size | 1/2" Male (PT / BSPT / NPT / G) |
Adjustment Mechanism | Precision Brass Adjustment Screw with Locknut |
Fluid Compatibility | Compressed Air, Inert Gas |
Operating Pressure Range | 0 to 1.0 MPa (0 to 10 bar / 0 to ~150 PSI) |
Proof / Burst Pressure | 3.0 MPa (~435 PSI) |
Operating Temperature | -10°C to +80°C (14°F to 176°F) |
Filtration Rating | 40 to 90 Microns |
Noise Reduction Level | ~85 to 90 dB attenuation |
Body Material (Base) | Brass (HPb59-1) |
Filter Element Material | Porous Sintered Bronze / Copper |
