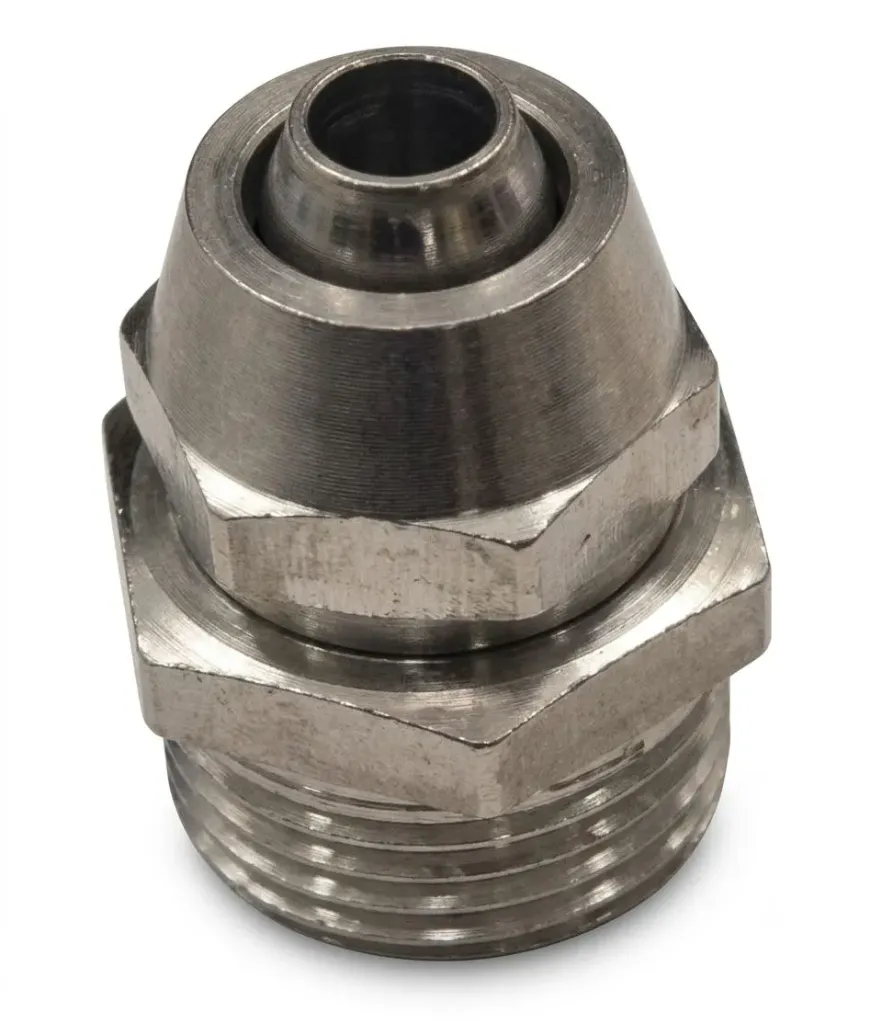

The AIRMIXS BC08-03 is a heavy-duty metallic bicone compression fitting engineered for high-pressure and high-temperature pneumatic, hydraulic, and fluid automation lines. Designed to connect an 8mm outer diameter (OD) metallic or plastic tube to a 3/8" male threaded port, it features a brass cutting ring (olive/ferrule) and compression nut mechanism. Upon tightening, the internal bicone crimps securely onto the tubing wall to establish a rigid, vibration-resistant, zero-leak seal capable of withstanding significantly higher operating pressures than standard push-in plastic fittings.
Feature / Specification | Detail |
|---|
Model Code | BC08-03 |
Fitting Type | Metallic Compression Fitting (Male Straight Connector) |
Tube Outer Diameter (OD) | 8 mm |
Thread Connection | 3/8" Male Thread (BSPT / NPT / ISO 228) |
Body Material | Precision Nickel-Plated Brass / Solid Brass |
Sealing System | Metallic Bicone Olive Ring & Compression Nut |
Working Pressure | Up to 60 – 110 bar (870 – 1600 PSI dependent on tubing material) |
Temperature Range | -40°C to +150°C (-40°F to +302°F) |
Compatible Tubing | Copper, Brass, Aluminum, Stainless Steel, PA/Nylon, PU Tubing |
Fluid Media | Compressed Air, Hydraulic Oil, Lubricants, Water, Non-Corrosive Fluids |
