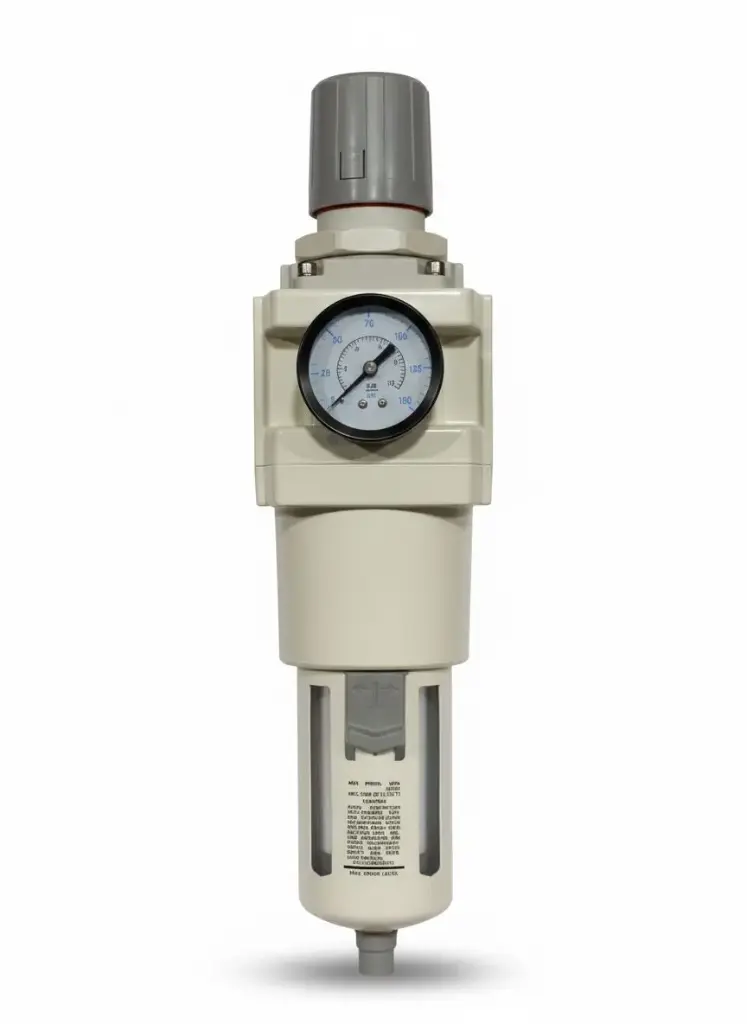

The AW5000-10 is a "Space-Saver" unit that combines two essential air treatment functions into a single body. It is primarily used at the beginning of a pneumatic system to protect downstream valves and cylinders from damage caused by water, scale, and pressure spikes.
Feature | Specification |
|---|
Model | AW5000-10 (High-Flow Series) |
Port Size | 1" BSP / NPT |
Pressure Gauge Port | 1/4" |
Flow Capacity | Approx. 5,500 L/min (195 SCFM) |
Operating Pressure Range | 0.05 to 0.85 MPa (7 to 125 PSI) |
Max. Supply Pressure | 1.0 MPa (145 PSI) |
Proof Pressure | 1.5 MPa (215 PSI) |
Filtration Rating | 25 Micron(Standard Sintered Brass) |
Operating Temp. | 5°C to 60°C |
Drain Type | Manual Drain (Standard) or Auto-Drain (Optional) |
