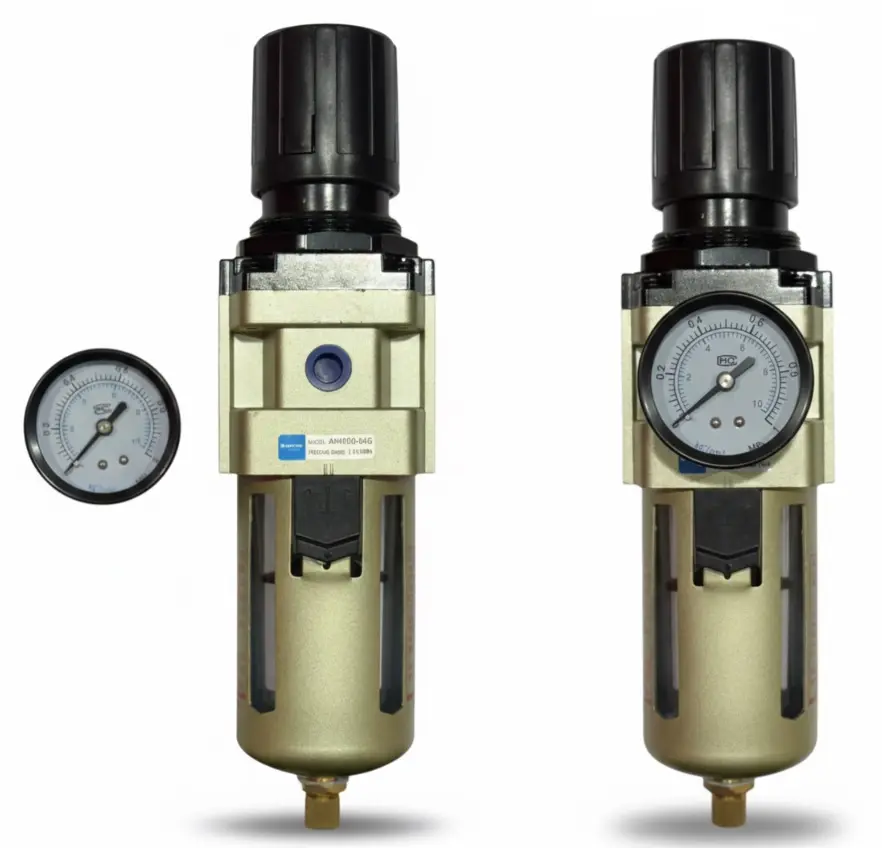

The AIRMIXS AW4000-04G is essential for any workshop or factory using pneumatic tools. It removes moisture, rust, and pipe scale that can cause premature failure in expensive solenoid valves and air cylinders.
Feature | Specification |
|---|
Model | AW4000-04G (Industrial Series) |
Port Size (Inlet/Outlet) | 1/2" BSP / NPT |
Pressure Gauge Port | 1/4" |
Filtration Rating | 5 Micronto 25 Micron (Sintered Brass) |
Operating Pressure Range | 0.05 to 0.85 MPa (7 to 125 PSI) |
Max. Supply Pressure | 1.0 MPa (145 PSI) |
Max. Flow Rate | Approx. 4,000 L/min |
Operating Temperature | 5°C to 60°C |
Drain Type | Manual Drain (Standard) |
Bowl Material | Polycarbonate with Metal Guard |
