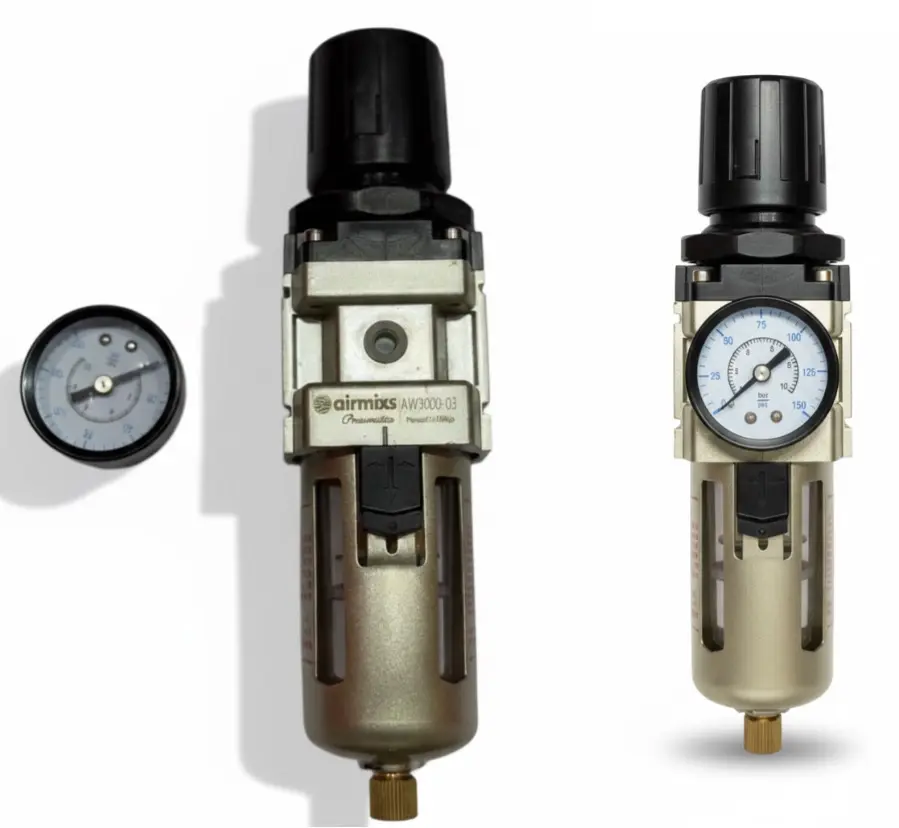

The AIRMIXS AW3000-03 offers a compact and efficient solution for air preparation. By removing liquid water, oil, and solid particles from your compressed air line, it prevents corrosion and mechanical wear in downstream equipment like cylinders and solenoid valves.
Feature | Specification |
|---|
Brand | AIRMIXS |
Model | AW3000-03 |
Port Size (Inlet/Outlet) | 3/8" BSP |
Pressure Gauge Port | 1/8" |
Max. Flow Rate | 2,000 L/min(70 SCFM) |
Set Pressure Range | 0.05 to 0.85 MPa (7 to 125 PSI) |
Max. Supply Pressure | 1.0 MPa (145 PSI) |
Filtration Rating | 25 Micron(Standard Sintered Brass) |
Ambient & Fluid Temp. | 5°C to 60°C |
Drain Type | Manual Drain (Standard) |
