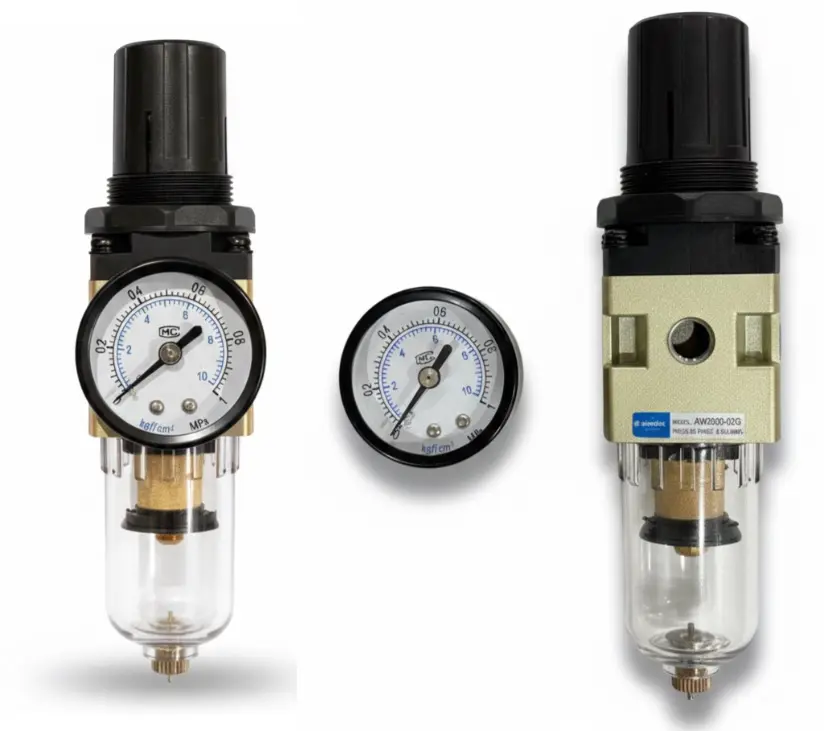

The AIRMIXS AW2000-02G is a professional-grade air treatment unit that combines filtration and regulation into one compact body to reduce piping and leak points. It is engineered to provide the high-quality air needed for the efficient operation of pneumatic cylinders and valves.
Feature | Specification |
|---|
Model | AW2000-02G (Integrated Gauge) |
Port Size | 1/4" BSP / NPT |
Gauge Port | 1/8" |
Filtration Rating | 25 Micron(Sintered Brass Element) |
Operating Pressure | 0.05 to 0.85 MPa (7 to 125 PSI) |
Max. Supply Pressure | 1.0 MPa (145 PSI) |
Proof Pressure | 1.5 MPa (215 PSI) |
Flow Capacity | 550 L/min(Approx. 19 SCFM) |
Operating Temp. | 5°C to 60°C |
Drain Type | Manual Drain |
