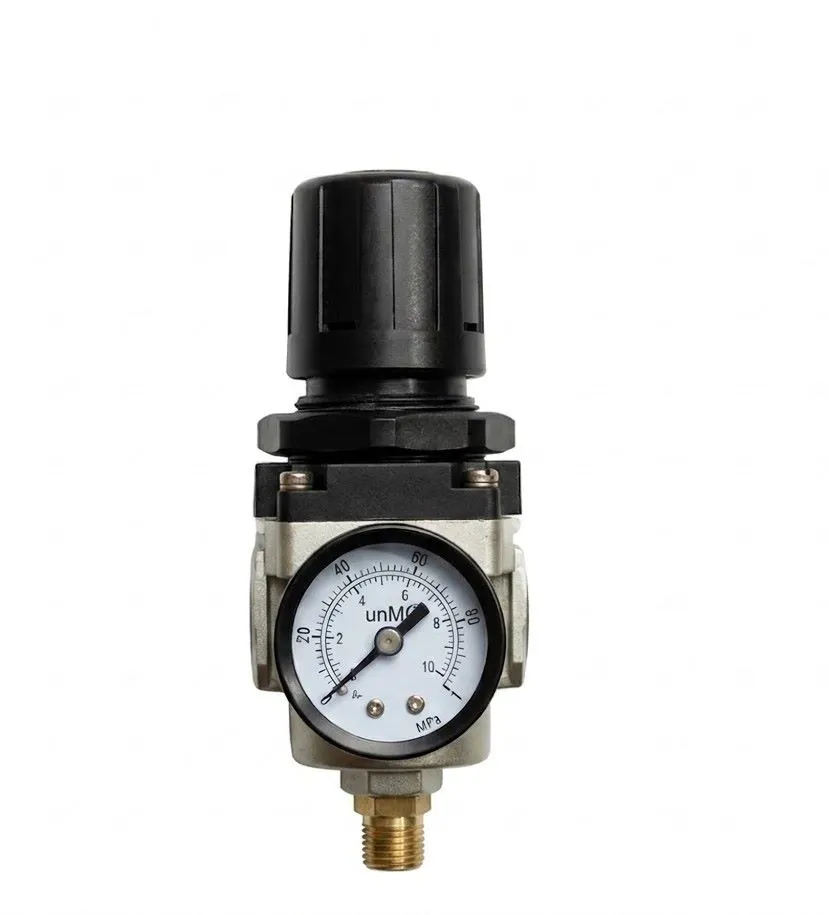

The AIRMIXS AR5000-10 High-Flow Air Pressure Regulator is a heavy-duty, large-capacity pressure control unit built for main supply lines, high-demand machinery, and industrial distribution networks. Featuring a full 1" port connection and a balanced valve mechanism, this regulator minimizes pressure drop and delivers stable downstream air supply even under heavy flow fluctuations and rigorous plant operations.
Constructed with a rugged die-cast aluminum alloy body, it provides superior structural strength and long-term durability in challenging industrial environments. The top adjustment knob features an ergonomic push-to-lock detent design—pull up to set the target operating pressure, then push down to lock it securely, preventing accidental setting shifts from machine vibration. Supplied complete with a front pressure gauge and a heavy-duty mounting bracket, it is ready for standalone line mounting or modular FRL integration.
Feature / Specification | Detail |
|---|
Brand | AIRMIXS |
Model | AR5000-10 |
Component Type | Heavy-Duty High-Flow Pneumatic Pressure Regulator |
Port Size | G 1" (BSP) / NPT 1" |
Gauge Port Size | G 1/4" |
Max Supply Pressure ($p_1$) | 1.0 MPa (10 Bar / 145 PSI) |
Proof Pressure | 1.5 MPa (15 Bar / 215 PSI) |
Adjustable Pressure Range ($p_2$) | 0.05 – 0.85 MPa (0.5 – 8.5 Bar / 7 – 123 PSI) |
Nominal Flow Rate | ~4,000 – 5,000 L/min |
Body Material | Die-Cast Aluminum Alloy |
Working Temperature Range | 5°C to 60°C (41°F to 140°F) |
Working Medium | Compressed Air / Inert Gases |
Included Accessories | Integrated Pressure Gauge & Steel Mounting Bracket |
