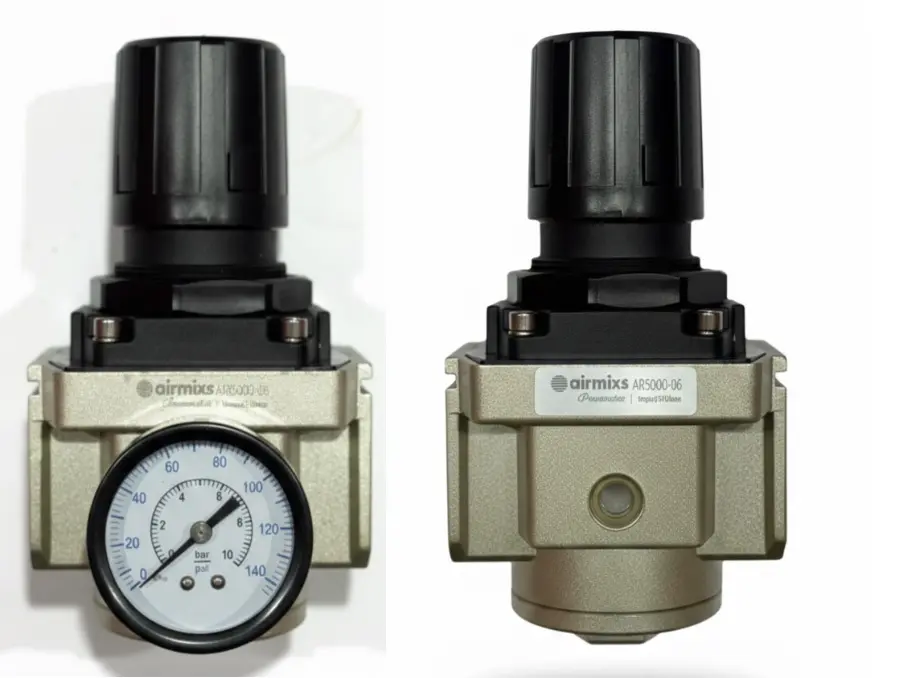

The AIRMIXS AR5000-06 is a robust solution for managing air pressure in high-demand pneumatic systems. It reduces high-pressure air from a compressor to a precise, steady output pressure, protecting sensitive downstream valves and cylinders from over-pressurization.
Feature | Specification |
|---|
Brand | AIRMIXS(Modular Series) |
Model | AR5000-06 |
Port Size | 3/4" BSP / G |
Rated Flow Rate | 8,000 L/min(Approx. 280 SCFM) |
Pressure Range | 0.05 to 0.85 MPa (7 to 125 PSI) |
Max. Supply Pressure | 1.0 MPa (145 PSI) |
Proof Pressure | 1.5 MPa (215 PSI) |
Operating Temp. | 5°C to 60°C |
Gauge Port | 1/4" BSP |
