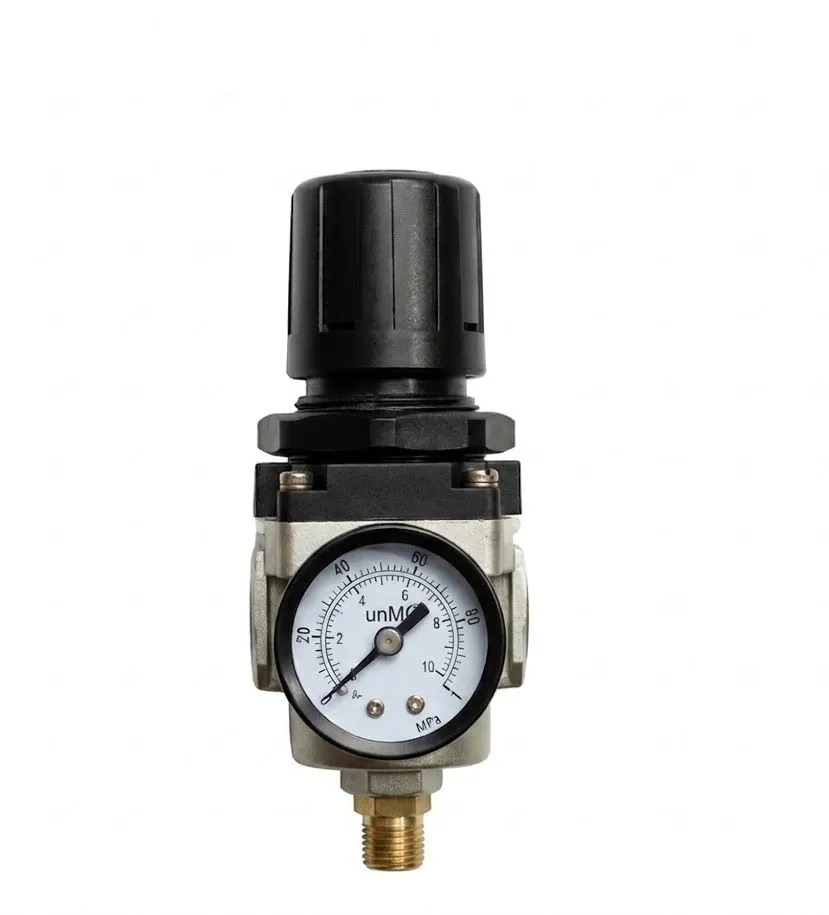

The AIRMIXS AR4000-04 High-Precision Air Pressure Regulator is a heavy-duty, high-flow air control unit designed for demanding industrial pneumatic distribution systems. Featuring a standard G 1/2" port size and a balanced valve design, this regulator minimizes pressure offset and stabilizes downstream airflow to ensure connected actuators, machinery, and air tools operate at steady performance levels.
Constructed with a rugged die-cast aluminum housing, it provides exceptional physical durability in challenging production environments. The ergonomic top-adjustment knob includes a push-to-lock detent mechanism—pull up to set the exact pressure, then press down to lock it in place to protect against setting changes caused by machine vibration. Outfitted with a back-mounted pressure gauge and a heavy-duty mounting bracket, it is ready for standalone or modular installation.
Feature / Specification | Detail |
|---|
Brand | AIRMIXS |
Model | AR4000-04 |
Component Type | High-Flow Pneumatic Pressure Regulator |
Port Size | G 1/2" (BSP) / NPT 1/2" |
Gauge Port Size | G 1/4" |
Max Supply Pressure ($p_1$) | 1.0 MPa (10 Bar / 145 PSI) |
Proof Pressure | 1.5 MPa (15 Bar / 215 PSI) |
Adjustable Pressure Range ($p_2$) | 0.05 – 0.85 MPa (0.5 – 8.5 Bar / 7 – 123 PSI) |
Nominal Flow Rate | ~2,500 – 3,000 L/min |
Body Material | Die-Cast Aluminum Alloy |
Working Temperature Range | 5°C to 60°C (41°F to 140°F) |
Working Medium | Compressed Air |
Included Accessories | High-Visibility Pressure Gauge & Mounting Bracket |
