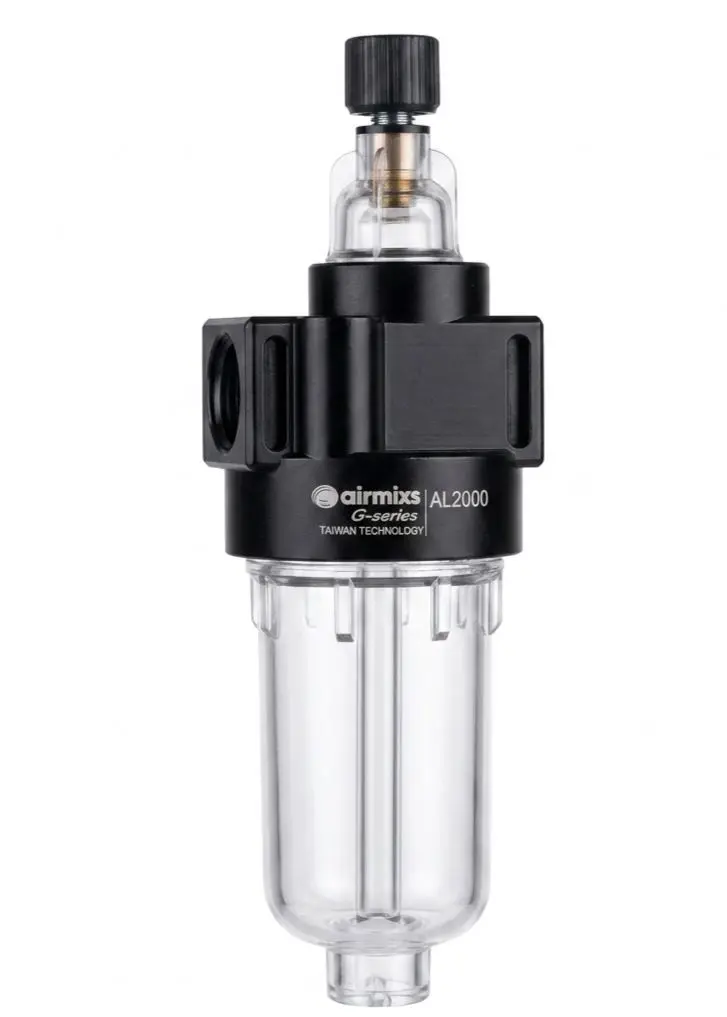

The AL2000 is a core component of the AIRMIXS G-series air treatment line. It features a precision adjustment needle that allows operators to finely tune the oil drip rate according to the specific requirements of the connected machinery.
The unit is constructed with a durable aluminum alloy body and a high-transparency polycarbonate bowl, allowing for effortless monitoring of oil levels. Its compact, modular design enables it to be used as a standalone unit or easily coupled with BF-series filters and regulators using standard mounting brackets.
Feature | Specification |
|---|
Model | AL2000 |
Port Size | G 1/4" BSPP |
Material Type | Aluminum Alloy Body |
Working Medium | Compressed Air |
Recommended Oil | ISO VG32 or equivalent |
Max. Operating Pressure | 1.0 MPa (145 PSI) |
Proof Pressure | 1.5 MPa (215 PSI) |
Operating Temperature | 5°C to 60°C |
Bowl Material | Polycarbonate |
Min. Flow for Lubrication | 15 L/min |
