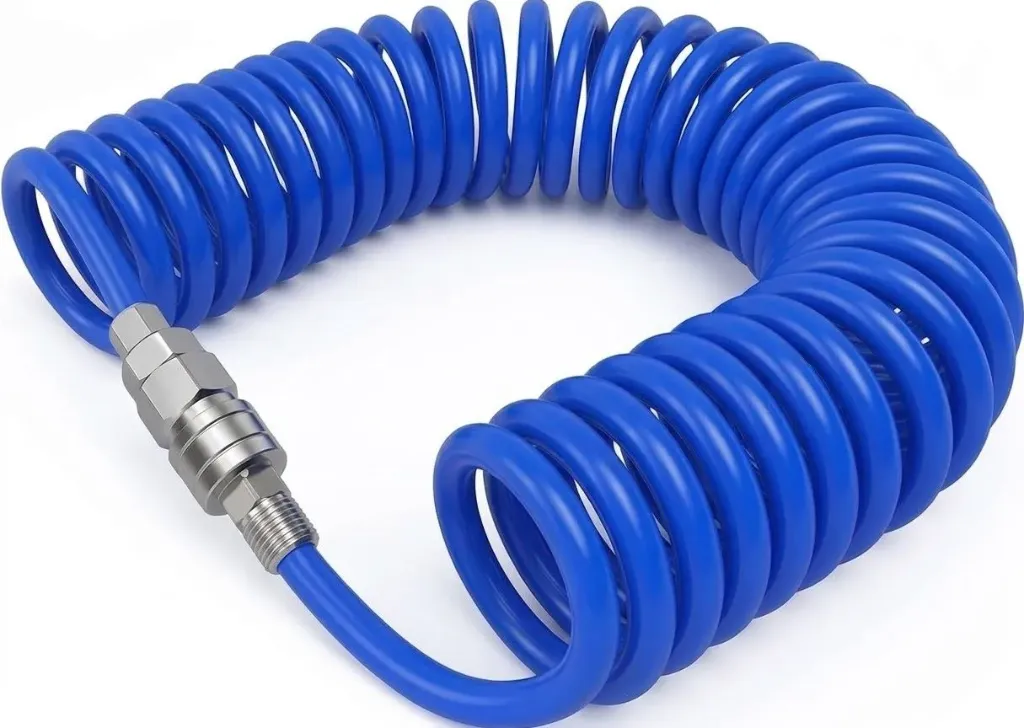

The AIRMIXS 8×5mm Recoil Spiral Polyurethane Hose (5-Meter Working Length) is a compact, highly resilient pneumatic spring tube designed for flexible air supply in workstations, assembly lines, automotive workshops, and automated machinery. Featuring an 8mm outer diameter and a 5mm inner diameter, this coiled hose provides higher airflow capacity while extending smoothly and retracting automatically to keep your workspace clear of entanglements.
Crafted from high-performance thermoplastic polyurethane (TPU), it delivers outstanding elastic memory, high kink resistance, and long-term resistance against oils, grease, and mechanical wear. Equipped with durable pre-installed male swivel or spring-guarded fittings, it connects effortlessly to pneumatic tools, blow guns, and quick-coupler air lines.
Feature / Specification | Detail |
|---|
Brand | AIRMIXS |
Hose Type | Spiral / Recoil / Spring Polyurethane Tube |
Material | High-Grade Thermoplastic Polyurethane (TPU) |
Outer Diameter (OD) | 8 mm |
Inner Diameter (ID) | 5 mm |
Expanded Length | 5 Meters (Approx. 16.4 ft) |
Resting / Coiled Length | ~20 – 30 cm |
Color | Blue |
End Fittings | Male Threaded Swivel Couplers with Spring Strain Relief |
Working Pressure | 8 – 10 Bar (approx. 116 – 145 PSI) |
Bursting Pressure (20°C) | 24 – 30 Bar (approx. 350 PSI) |
Working Temperature Range | -20°C to +60°C (-4°F to 140°F) |
Hardness Standard | Shore A 95 |
