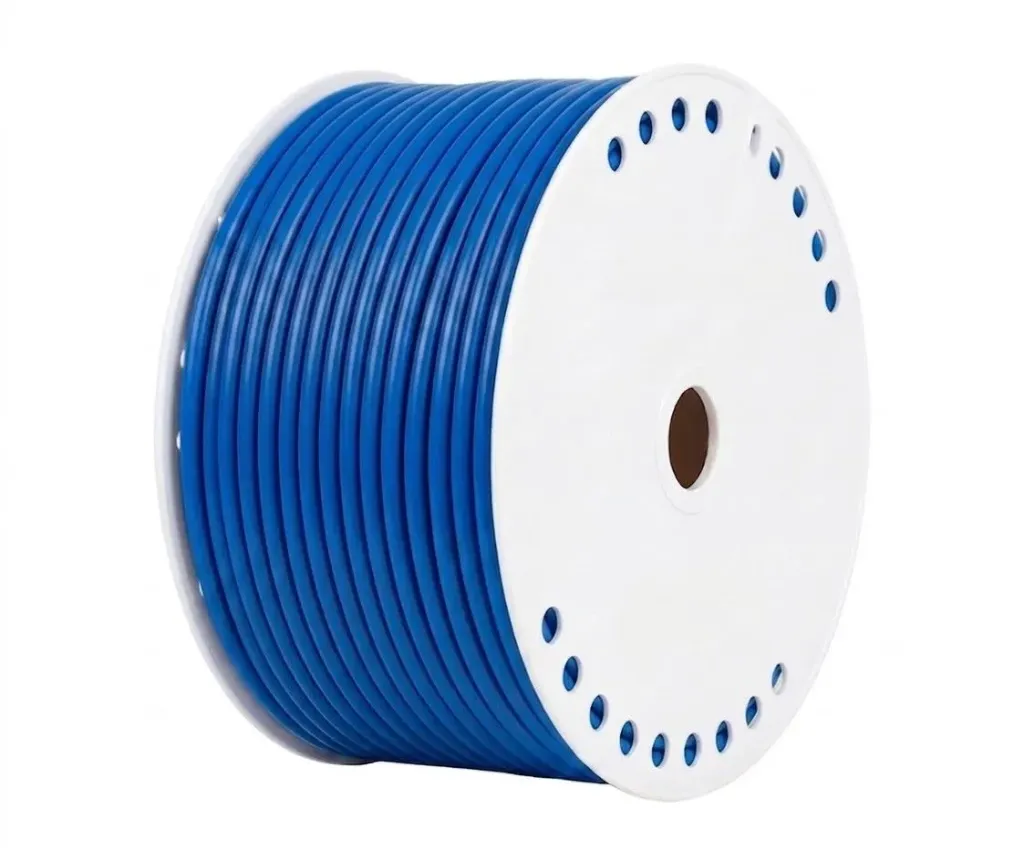

The AIRMIXS 5/32" (4mm) Polyurethane Pneumatic Tubingin Blue is designed for compact pneumatic control lines, air signal routing, micro-actuators, and automated machinery. Featuring a 5/32-inch outer diameter (4mm) and a 3/32-inch inner diameter (2.5mm), this 100-meter continuous roll provides precise airflow delivery in space-constrained installations.
Manufactured from premium thermoplastic polyurethane (TPU), it delivers outstanding kink resistance, shape memory retention, and high durability against mechanical wear and oils. Its high-visibility blue color allows for clean circuit organization and quick line identification across complex pneumatic control panels and factory automation setups.
Feature / Specification | Detail |
|---|
Brand | AIRMIXS |
Material | Thermoplastic Polyurethane (TPU) |
Outer Diameter (OD) | 5/32" (4.0 mm) |
Inner Diameter (ID) | 3/32" (2.5 mm) |
Roll Length | 100 Meters (328 ft) |
Color | Blue |
Working Pressure | 8 – 10 Bar (approx. 116 – 145 PSI) |
Bursting Pressure (20°C) | 20 – 24 kgf/cm² (approx. 20 Bar / 290 PSI) |
Working Temperature Range | -20°C to +60°C (-4°F to 140°F) |
Minimum Bend Radius | ~12 – 15 mm |
Dimensional Tolerance | ±0.05 mm |
Fluid Compatibility | Compressed air, non-corrosive gases, air signal lines |
Hardness Standard | Shore A 95 |
