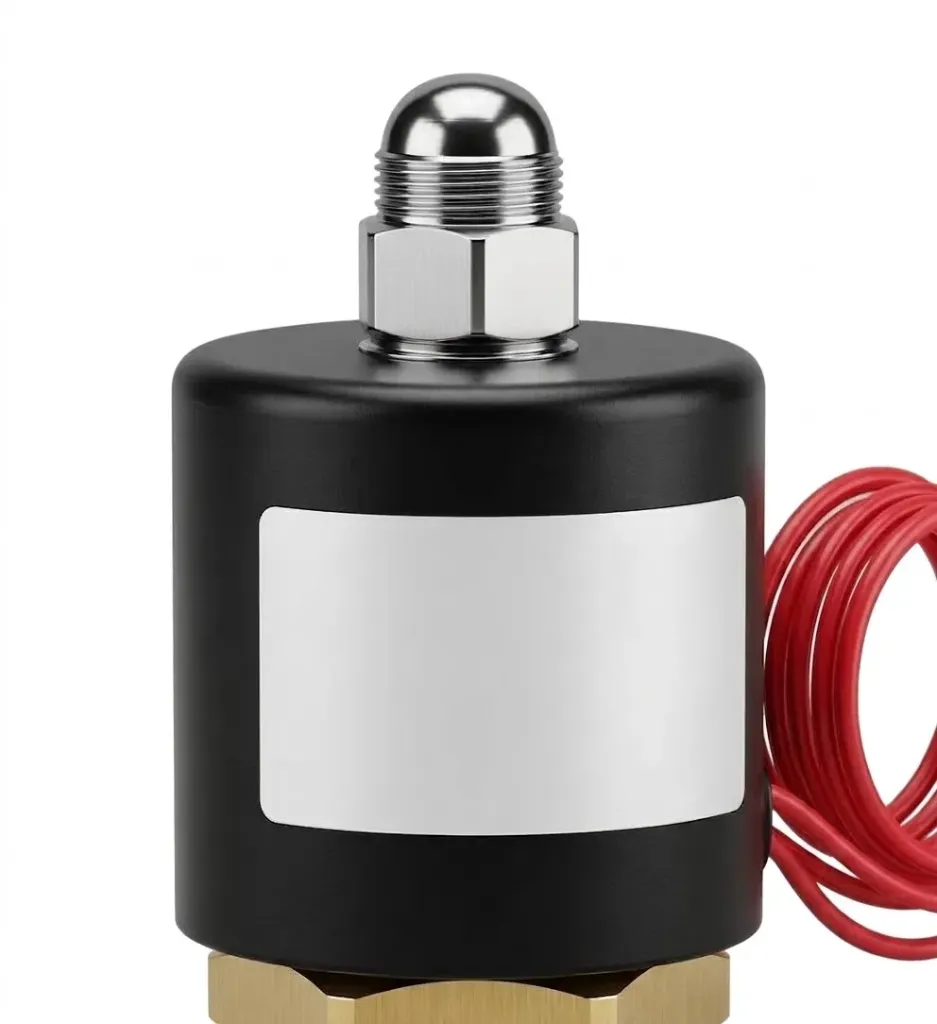

The AIRMIXS 2W Series UD-08 24VDC Replacement Solenoid Valve Coil is designed specifically for direct-acting 2-way solenoid valves with an 8mm inner tube aperture (UD-08 frame size). Operating on low-voltage 24VDC power, this compact encapsulated coil delivers reliable magnetic actuation, swift response times, and effective thermal dissipation during continuous duty operation. Built to protect internal copper windings against atmospheric moisture, dirt, and electrical surge, it features standard plug-in terminals for quick mounting and effortless field replacement without breaking system line connections.
Parameter | Specification |
|---|
Brand | AIRMIXS |
Compatible Valve Series | 2W Series (UD-08 / 8mm Armature Tube Size) |
Operating Voltage | 24VDC |
Voltage Tolerance | ±10% |
Power Consumption | 6.5 W to 9.5 W |
Electrical Connection | DIN / Flying Leads Plug-in Terminal |
Protection Class | IP65 (with sealed connector assembly) |
Duty Cycle | 100% ED (Continuous Duty) |
Insulation Class | Class H / Class F |
Ambient Temperature Range | -20°C to +60°C |
Response Time | ≤ 15 ms |
