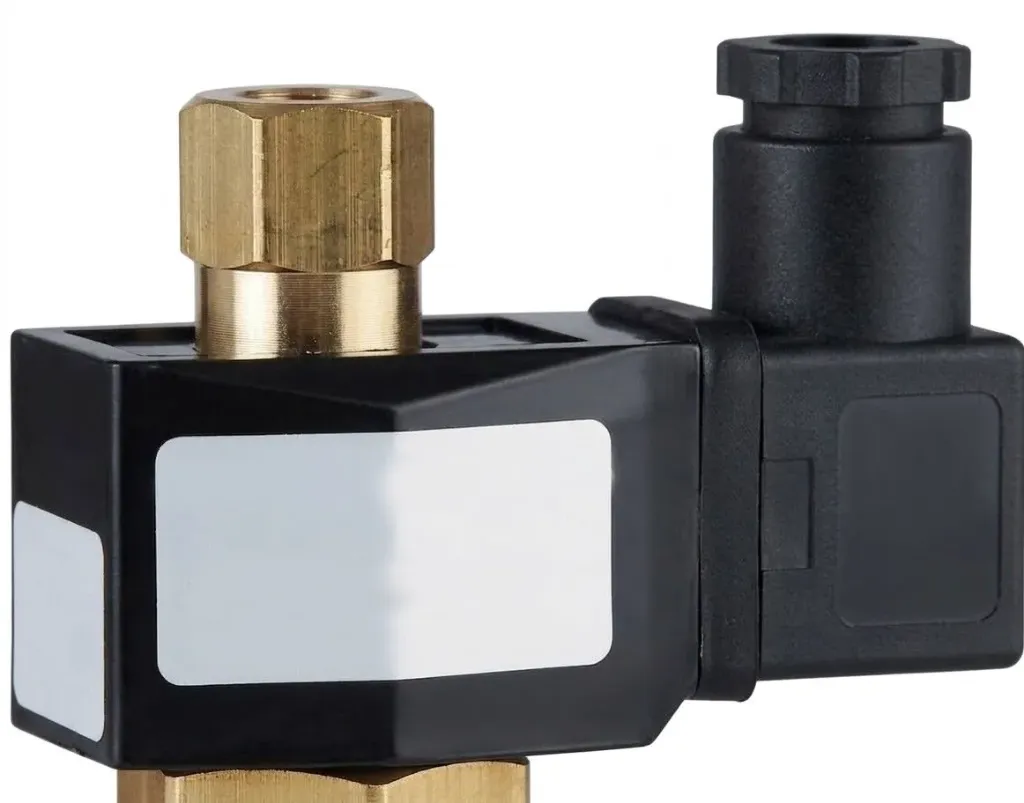

The AIRMIXS 2W Series 24VDC Replacement Solenoid Valve Coil provides dependable low-voltage electromagnetic power for direct-acting 2-way solenoid valves. Engineered for seamless integration with 2W series valves, this encapsulated coil offers exceptional heat dissipation, fast response times, and consistent holding force during extended operation. Its sealed housing shields the inner copper windings against environmental moisture and contaminants, while the standard DIN terminal connection allows for quick electrical wiring and convenient field replacement without breaking pipe seals.
Parameter | Specification |
|---|
Brand | AIRMIXS |
Compatible Valve Series | 2W Series (2W025-08, 2W160-15, 2W200-20, 2W250-25, 2W350-35, 2W400-40, 2W500-50) |
Operating Voltage | 24VDC |
Voltage Tolerance | ±10% |
Power Consumption | 12 W to 18 W |
Electrical Connection | DIN 43650 Form A / Form B Terminal Plug |
Protection Class | IP65 (with properly installed DIN connector gasket) |
Duty Cycle | 100% ED (Continuous Duty) |
Insulation Class | Class H / Class F |
Ambient Temperature Range | -20°C to +60°C |
Response Time | ≤ 20 ms |
