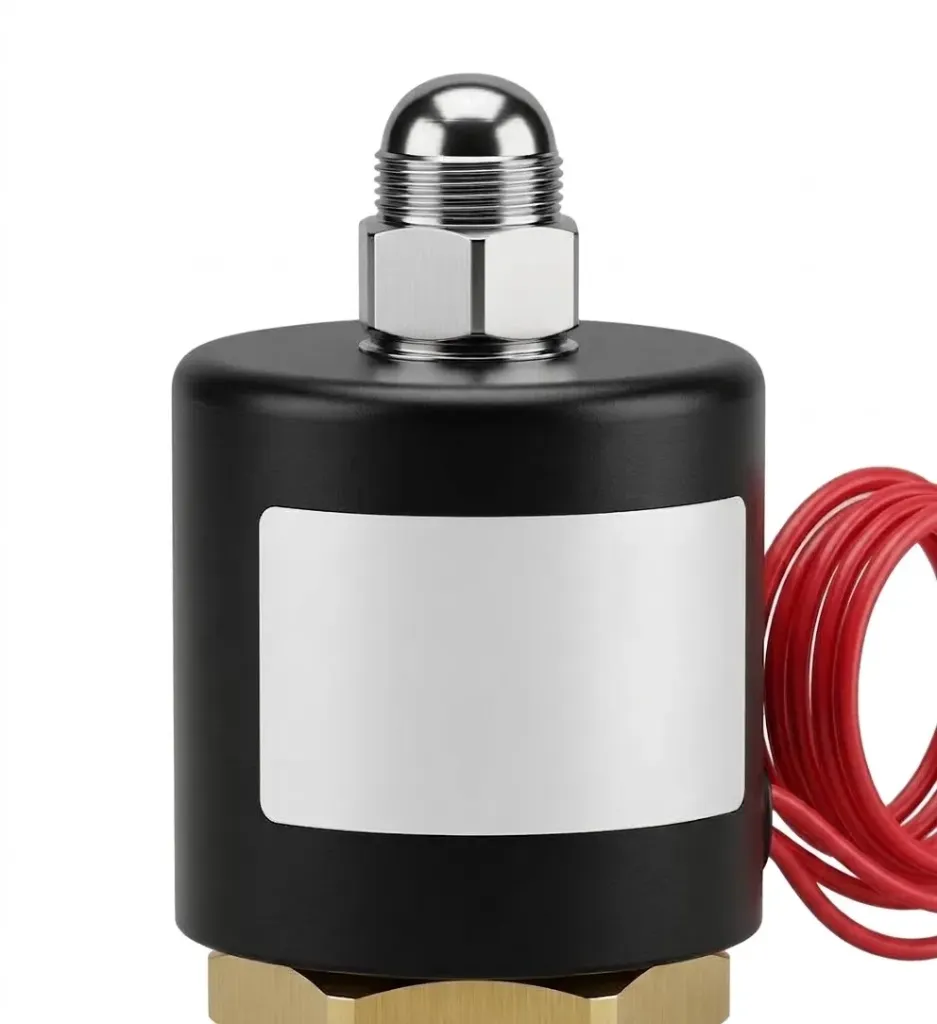

The AIRMIXS 2W Series UD-08 220VAC Replacement Solenoid Valve Coil provides high-efficiency electromagnetic actuation for 2-way direct-acting solenoid valves utilizing an 8mm inner tube aperture (UD-08 frame size). Operating on standard 220VAC line power, this fully encapsulated coil delivers rapid switching response, stable magnetic flux, and effective heat dissipation under continuous operation. The protective outer housing shields internal copper windings from environmental moisture, dust, and electrical degradation, while standard plug-in terminals ensure simple electrical connection and effortless coil swapping without opening system pipe lines.
Parameter | Specification |
|---|
Brand | AIRMIXS |
Compatible Valve Series | 2W Series (UD-08 / 8mm Armature Tube Size) |
Operating Voltage | 220VAC |
Voltage Tolerance | ±10% |
Power Consumption | 8.5 VA to 12.0 VA (50/60 Hz) |
Electrical Connection | DIN / Flying Leads Plug-in Terminal |
Protection Class | IP65 (with sealed connector assembly) |
Duty Cycle | 100% ED (Continuous Duty) |
Insulation Class | Class H / Class F |
Ambient Temperature Range | -20°C to +60°C |
Response Time | ≤ 20 ms |
