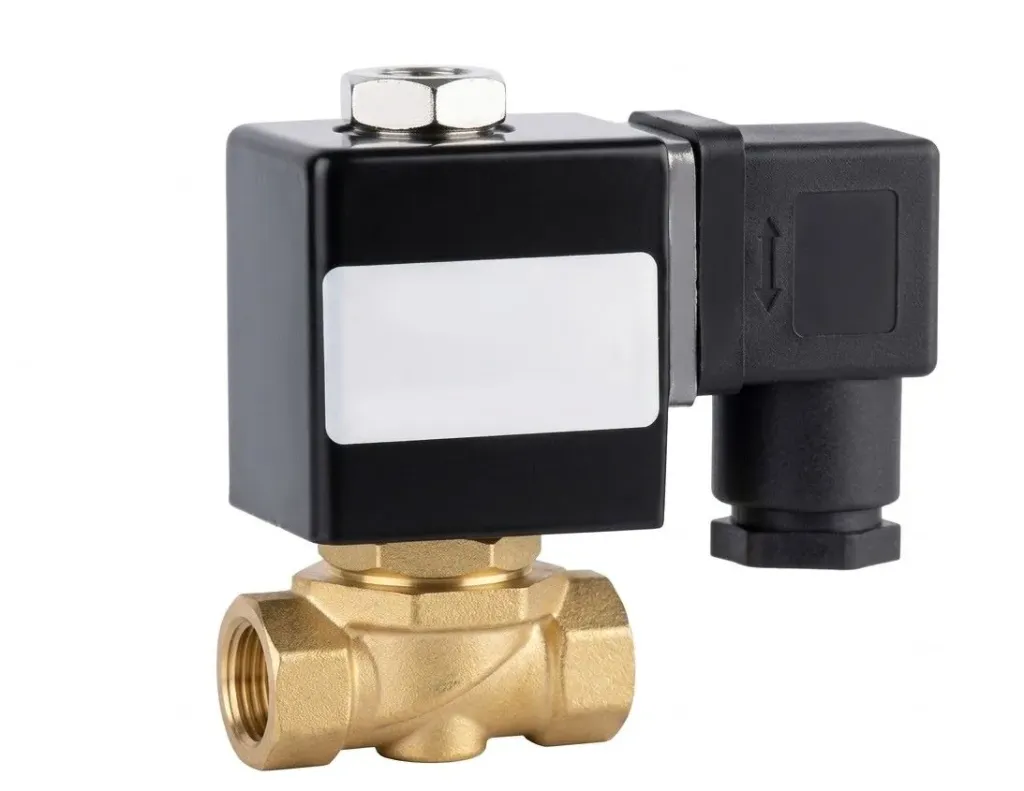

The AIRMIXS PU Series 220VAC Replacement Solenoid Valve Coil is engineered for high-efficiency actuation and long service life in industrial fluid control and pneumatic systems. Specifically designed to fit PU series solenoid valves, this encapsulated coil provides reliable electromagnetic performance, rapid response times, and excellent thermal dissipation under continuous duty operation. Equipped with a standard DIN connector terminal, it ensures secure electrical connection, high protection against dust and moisture ingress, and hassle-free field replacement without disturbing the valve body line connections.
Parameter | Specification |
|---|
Brand | AIRMIXS |
Compatible Valve Series | PU Series (PU220-02, PU220-03, PU220-04, PU220-06, PU220-08) |
Operating Voltage | 220VAC |
Voltage Tolerance | ±10% |
Power Consumption | 6.0 VA to 8.5 VA (50/60 Hz) |
Electrical Connection | DIN 43650 Form A / Form B Plug-in Terminal |
Protection Class | IP65 (with properly fitted DIN connector gasket) |
Duty Cycle | 100% ED (Continuous Duty) |
Insulation Class | Class H / Class F |
Ambient Temperature Range | -20°C to +60°C |
Response Time | ≤ 20 ms |
