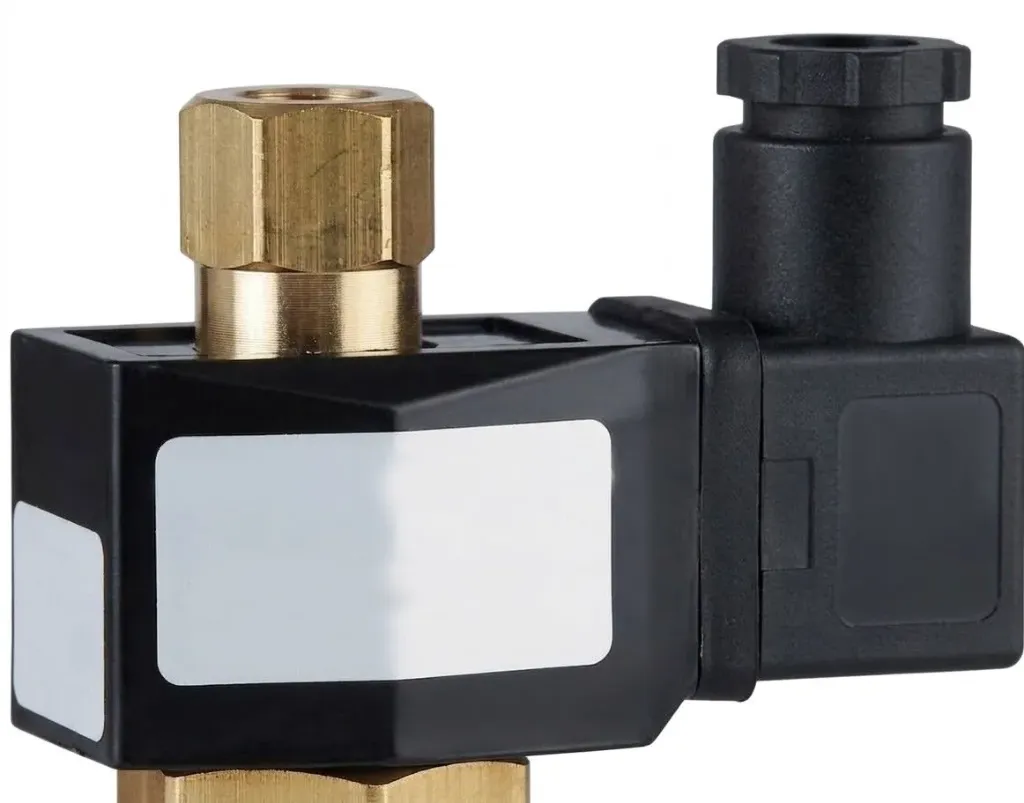

The AIRMIXS 2W Series 220VAC Replacement Solenoid Valve Coil delivers reliable electromagnetic performance and fast actuation for general-purpose 2-way direct-acting solenoid valves. Designed specifically to fit 2W series valves across standard port sizes, this fully encapsulated coil protects internal copper windings against humidity, dust, and mechanical stress. Operating on standard 220VAC line power, it provides continuous-duty reliability, low temperature rise, and effortless plug-in wiring terminal connection for quick field servicing without removing the valve body from the fluid pipeline.
Parameter | Specification |
|---|
Brand | AIRMIXS |
Compatible Valve Series | 2W Series (2W025-08, 2W160-15, 2W200-20, 2W250-25, 2W350-35, 2W400-40, 2W500-50) |
Operating Voltage | 220VAC |
Voltage Tolerance | ±10% |
Power Consumption | 15 VA to 22 VA (50/60 Hz) |
Electrical Connection | DIN 43650 Form A / Form B Terminal Plug |
Protection Class | IP65 (with properly installed DIN connector gasket) |
Duty Cycle | 100% ED (Continuous Duty) |
Insulation Class | Class H / Class F |
Ambient Temperature Range | -20°C to +60°C |
Response Time | ≤ 25 ms |
