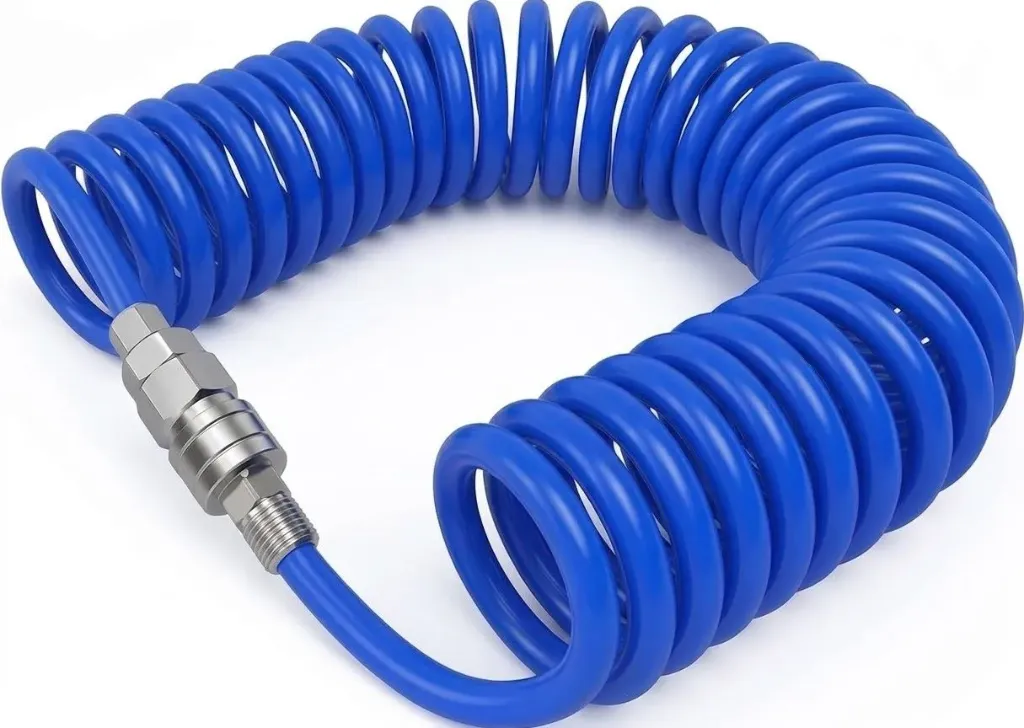

The AIRMIXS 10×6.5mm Recoil Spiral Polyurethane Hose (5-Meter Working Length) is a high-flow, self-retracting pneumatic spring tube designed for demanding air supply applications in workstations, assembly lines, automotive repair shops, and automated machinery. Featuring a 10mm outer diameter and a 6.5mm inner diameter, this coiled hose delivers increased volumetric airflow to air tools while expanding smoothly and retracting automatically to keep work areas hazard-free and organized.
Manufactured from high-resilience thermoplastic polyurethane (TPU), it offers exceptional shape memory retention, outstanding kink resistance, and superior durability against oils, grease, and mechanical wear. Outfitted with pre-installed male swivel or spring-guarded fittings, it connects seamlessly to pneumatic machinery, blow guns, and quick-coupler lines.
Feature / Specification | Detail |
|---|
Brand | AIRMIXS |
Hose Type | Spiral / Recoil / Spring Polyurethane Tube |
Material | High-Grade Thermoplastic Polyurethane (TPU) |
Outer Diameter (OD) | 10 mm |
Inner Diameter (ID) | 6.5 mm |
Expanded Length | 5 Meters (Approx. 16.4 ft) |
Resting / Coiled Length | ~22 – 32 cm |
Color | Blue |
End Fittings | Male Threaded Swivel Couplers with Spring Strain Relief |
Working Pressure | 8 – 10 Bar (approx. 116 – 145 PSI) |
Bursting Pressure (20°C) | 24 – 30 Bar (approx. 350 PSI) |
Working Temperature Range | -20°C to +60°C (-4°F to 140°F) |
Hardness Standard | Shore A 95 |
