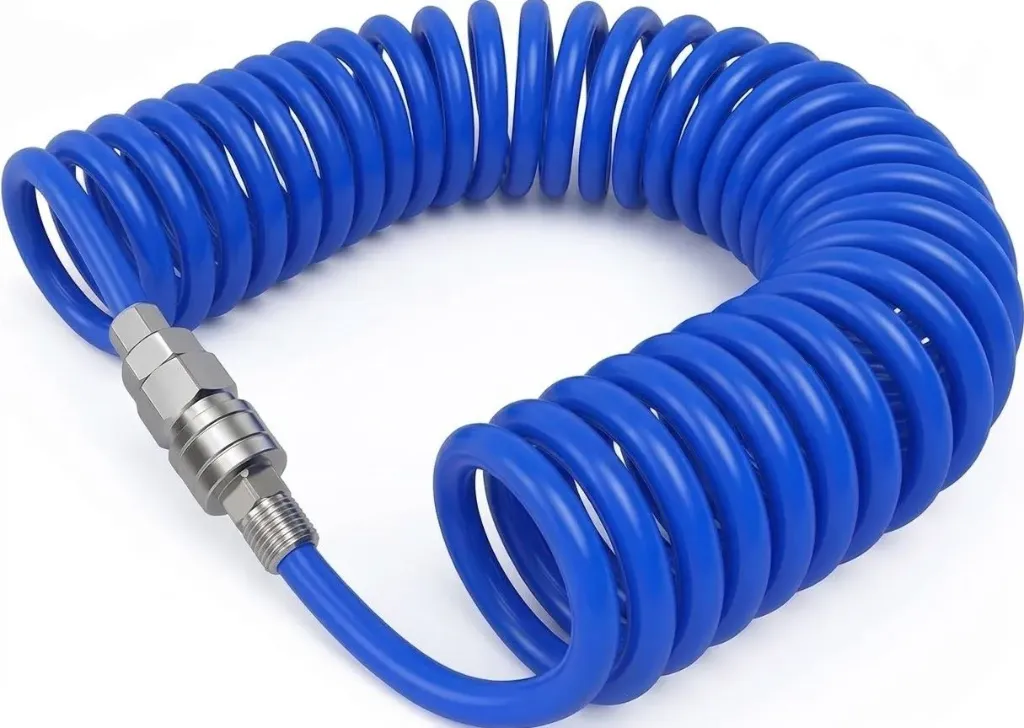

The AIRMIXS 10×6.5mm Recoil Spiral Polyurethane Hose (15-Meter Working Length) is a long-reach, high-capacity self-retracting pneumatic spring tube designed for expansive industrial workstations, vehicle service bays, assembly lines, and automated equipment. Featuring a 10mm outer diameter and a 6.5mm inner diameter, this coiled hose provides maximum volumetric airflow over extended distances while retracting automatically to keep floor areas tidy and free of trip hazards.
Manufactured from premium thermoplastic polyurethane (TPU), it offers exceptional shape memory retention, extreme kink resistance, and superior durability against oils, grease, and mechanical wear. Outfitted with heavy-duty pre-installed male swivel or spring-guarded fittings, it connects seamlessly to pneumatic machinery, blow guns, and quick-coupler lines.
Feature / Specification | Detail |
|---|
Brand | AIRMIXS |
Hose Type | Spiral / Recoil / Spring Polyurethane Tube |
Material | High-Grade Thermoplastic Polyurethane (TPU) |
Outer Diameter (OD) | 10 mm |
Inner Diameter (ID) | 6.5 mm |
Expanded Length | 15 Meters (Approx. 49.2 ft) |
Resting / Coiled Length | ~50 – 60 cm |
Color | Blue |
End Fittings | Male Threaded Swivel Couplers with Spring Strain Relief |
Working Pressure | 8 – 10 Bar (approx. 116 – 145 PSI) |
Bursting Pressure (20°C) | 24 – 30 Bar (approx. 350 PSI) |
Working Temperature Range | -20°C to +60°C (-4°F to 140°F) |
Hardness Standard | Shore A 95 |
