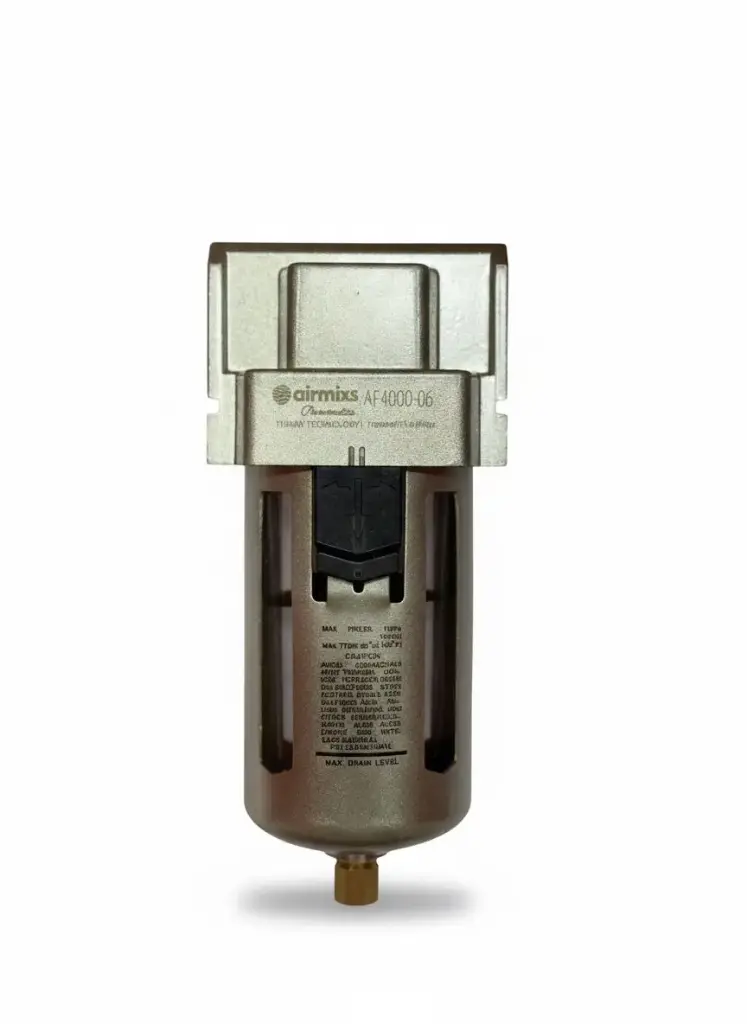

The AIRMIXS AF4000-06 is an essential component for any high-volume compressed air system. It utilizes centrifugal force to separate liquid water and heavy particles from the air stream, which are then trapped by a high-porosity sintered brass element.
Feature | Specification |
|---|
Brand | AIRMIXS |
Model | AF4000-06 |
Port Size (In/Out) | 3/4" BSP |
Filter Element | 25 Micron(Sintered Brass) |
Max. Flow Rate | 4,000 L/min(Approx. 141 SCFM) |
Max. Operating Pressure | 1.0 MPa (145 PSI) |
Proof Pressure | 1.5 MPa (215 PSI) |
Operating Temp. | 5°C to 60°C |
Drain Type | Manual Drain (Standard) |
Bowl Capacity | 45 $cm^3$ |
