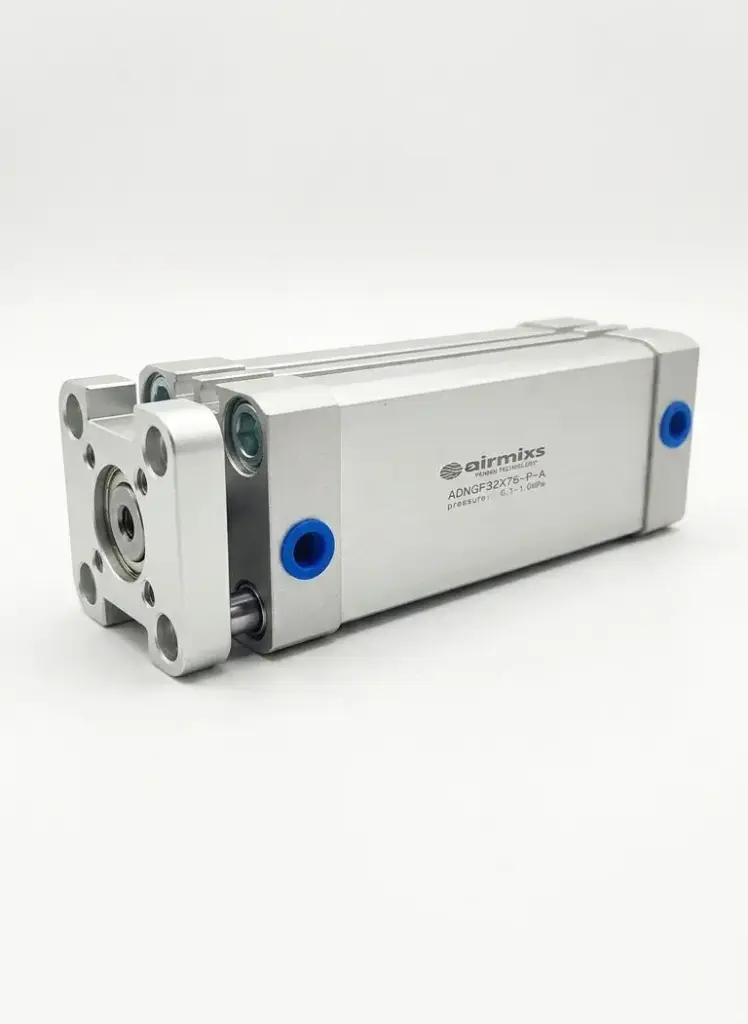

The ADNGF 32X75-P-A is a double-acting compact pneumatic cylinder engineered for high-precision industrial automation. It features a robust guide rod and yoke plate system that prevents the piston rod from rotating and allows the unit to handle higher lateral loads and torque than standard compact cylinders.
Designed to ISO 21287 standards, this cylinder offers a space-saving design without compromising on power, making it a reliable solution for heavy-duty clamping, precise positioning, and stopping applications in production environments.
Feature | Specification |
|---|
Model Number | ADNGF-32-75-P-A |
Piston Diameter | 32 mm |
Stroke Length | 75 mm |
Mode of Operation | Double-acting |
Cushioning | P: Elastic cushioning rings/plates at both ends |
Guide Type | Guide rod with yoke (Non-rotating) |
Operating Pressure | 1 bar to 10 bar (0.1 MPa to 1 MPa) |
Ambient Temperature | -20°C to 80°C |
Theoretical Force (6 bar) | Advance: 483 N / Return: 415 N |
Impact Energy | 0.4 J (at end positions) |
Pneumatic Connection | G 1/8 |
Position Detection | Prepared for T-slot proximity sensors |
Material (Barrel/Cover) | Anodized wrought aluminum alloy |
Material (Piston Rod) | High-alloy steel |
Product Weight | Approx. 580 g |
