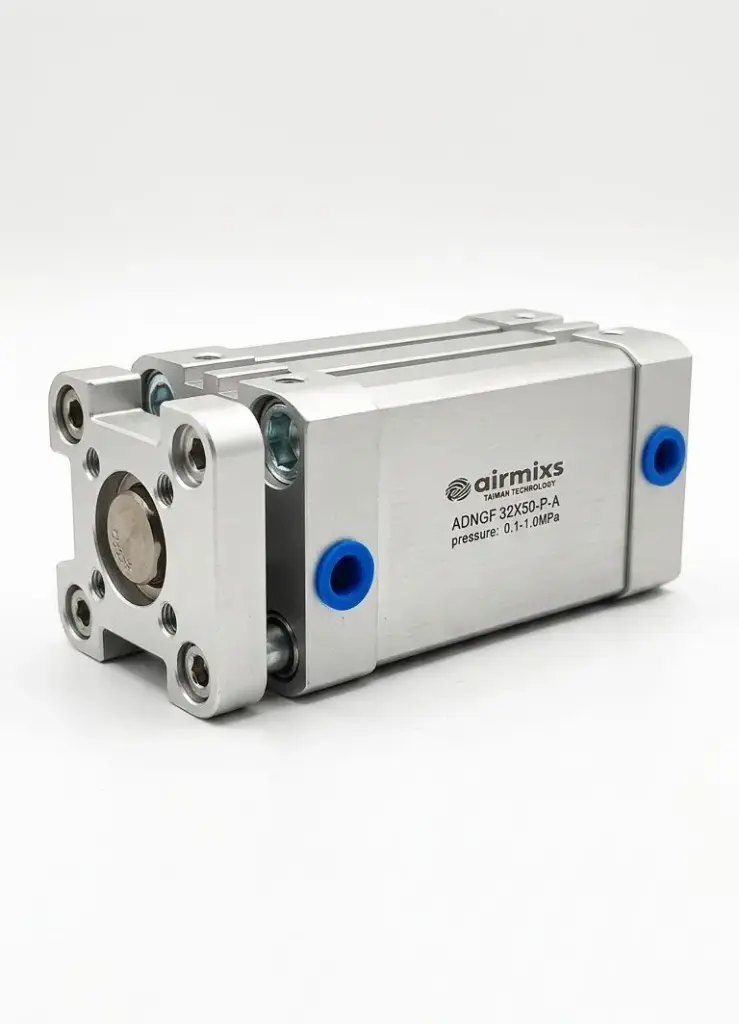

The ADNGF 32X50-P-A is a high-performance, double-acting pneumatic compact cylinder specifically engineered for high-precision industrial automation. This model features an integrated guide rod and yoke plate, ensuring the piston rod is secured against rotation and can withstand significant lateral forces and torque.
Conforming to ISO 21287 standards, this cylinder offers a space-saving design without sacrificing power, making it ideal for robust clamping, lifting, and stopping applications in modern production environments.
Feature | Specification |
|---|
Model Number | ADNGF-32-50-P-A |
Piston Diameter | 32 mm |
Stroke Length | 50 mm |
Mode of Operation | Double-acting |
Cushioning | P: Elastic cushioning rings/plates at both ends |
Guide Type | Guide rod with yoke (Non-rotating) |
Operating Pressure | 1 bar to 10 bar (0.1 MPa to 1 MPa) |
Ambient Temperature | -20°C to 80°C |
Theoretical Force (6 bar) | Advance: 483 N / Return: 415 N |
Impact Energy | 0.4 J (at end positions) |
Pneumatic Connection | G 1/8 |
Position Detection | Prepared for T-slot proximity sensors |
Material (Barrel/Cover) | Anodized wrought aluminum alloy |
Material (Piston Rod) | High-alloy steel |
Product Weight | Approx. 496 g |
