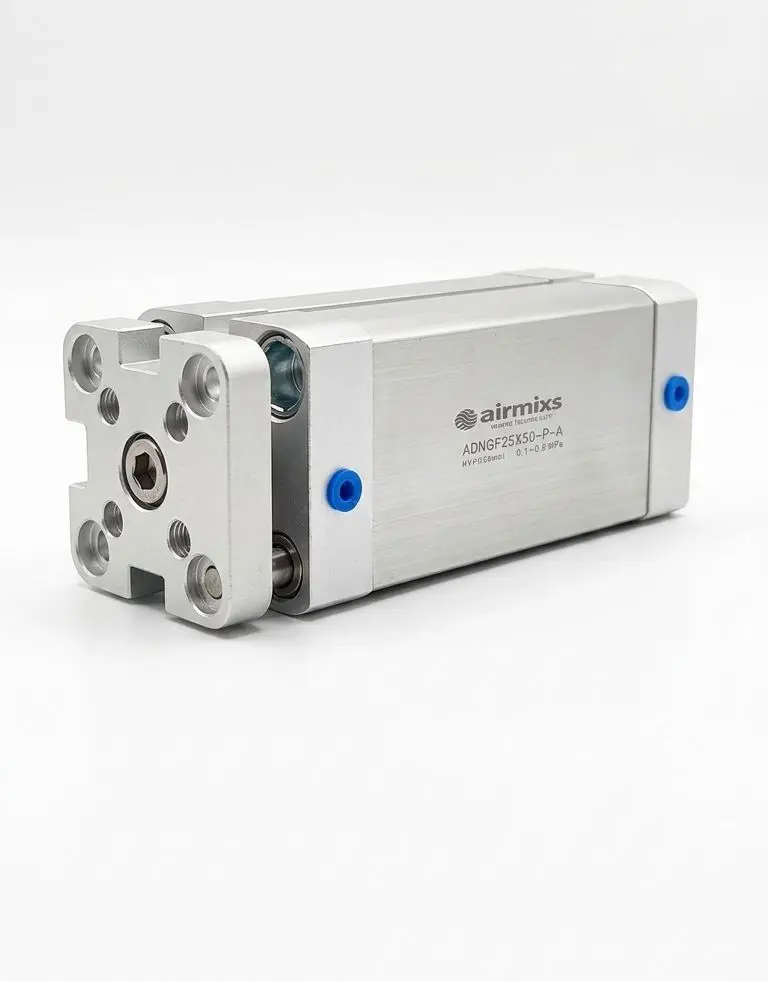

The ADNGF 25X50-P-A is a high-performance, double-acting pneumatic cylinder designed for industrial automation where space-saving and non-rotating precision are required. This model is equipped with integrated guide rods and a yoke plate, which provide maximum torsional stability and allow the unit to handle significant lateral loads without compromising accuracy.
Conforming to the ISO 21287 standard, it is an ideal solution for modern machine construction, offering a high force-to-size ratio and seamless integration with standard sensor technology.
Feature | Specification |
|---|
Model Number | ADNGF-25-50-P-A |
Piston Diameter | 25 mm |
Stroke Length | 50 mm |
Mode of Operation | Double-acting |
Cushioning | P: Elastic cushioning rings/plates at both ends |
Anti-Rotation/Guide | Guide rod with yoke (Non-rotating) |
Operating Pressure | 1.0 bar to 10 bar (0.1 MPa to 1 MPa) |
Ambient Temperature | -20°C to 80°C |
Theoretical Force (6 bar) | Advance: 295 N / Return: 247 N |
Pneumatic Connection | M5 thread |
Position Detection | Prepared for proximity sensors (integrated T-slots) |
Material (Barrel/Cover) | Anodized wrought aluminum alloy |
Material (Seals) | TPE-U (PUR) |
Product Weight | Approx. 341 g |
