Heavy-Duty Anti-Rotation and High Precision in a Compact Footprint

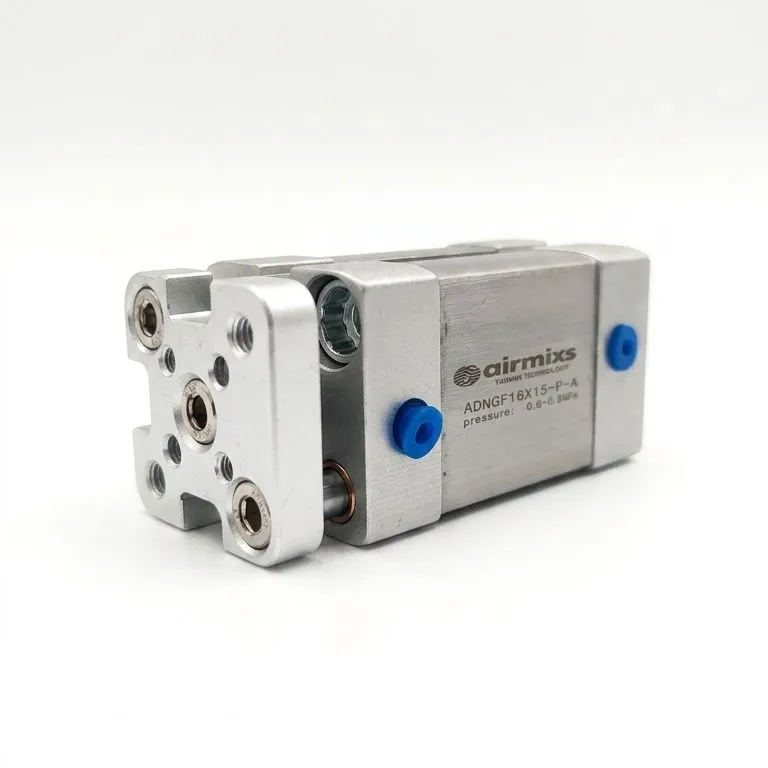

The AIRMIXS ADNGF-16-15-P-Ais an industrial-grade, double-acting guided compact pneumatic cylinder engineered based on global ISO 21287spacing standards.Featuring an integrated front yoke plate secured by dual stainless steel guide rods, this cylinder completely prevents the piston rod from rotating under load. This structural design guarantees maximum torsional stability, high lateral load resistance, and absolute process precision in tightly packed automation environments.
Built with a compact 16mm bore and a nimble 15mm stroke length, it provides fast, punchy, and precise linear movements. It is an exceptional selection for automated pick-and-place systems, sorting gates, precise material handling, and non-rotating tooling feeds. The unit comes equipped with integrated magnetic position tracking and flexible internal polymer cushioning rings at both ends to reduce end-stroke impact, minimize mechanical noise, and maximize equipment service life.
Feature | Specification |
|---|
Brand | AIRMIXS (Taiwan Technology) |
Model Code | ADNGF16X15-P-A |
Cylinder Type | Guided Compact Cylinder (ISO 21287 Based) |
Action Type | Double-Acting (Air-driven extension and retraction) |
Bore Size (Diameter) | 16 mm |
Stroke Length | 15 mm |
Anti-Rotation Feature | GF:Twin guide rods with front yoke plate (Plain bearing guide) |
Cushioning Type | P:Flexible elastic cushioning rings/plates at both ends |
Position Sensing | A:Integrated magnetic piston for flush-mount proximity sensors |
Operating Pressure | 0.6 – 0.8 MPa (6.0 – 8.0 Bar) |
Operating Medium | Filtered compressed air (Lubricated or Non-lubricated) |
Ambient Temperature | -20°C to +80°C |
Pneumatic Connection | M5 Port Threads |
Body Material | Anodized Extruded Aluminum Alloy |
