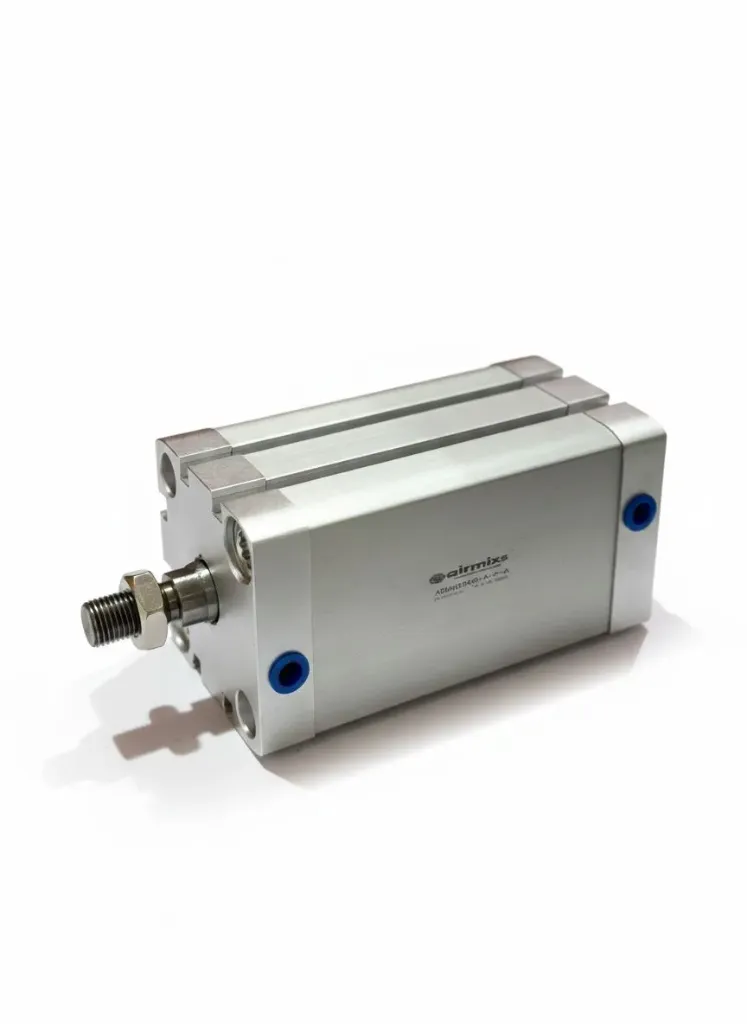

The AIRMIXS ADN50X80-A-P-A is a robust, double-acting compact pneumatic cylinder built to ISO 21287 international standards. Designed for high-force applications where installation space is a critical constraint, this cylinder delivers powerful linear motion within a significantly reduced footprint compared to standard profile cylinders.
With a 50mm bore and an 80mm stroke, it provides substantial pushing and pulling force, making it an ideal choice for heavy-duty industrial tasks such as medium-to-large scale clamping, material handling, and automated assembly operations. The unit features an anodized aluminum alloy body for enhanced durability and a high-strength piston rod. The "A-P-A" designation confirms it is equipped with a magnetic piston for position feedback, flexible elastic c
Feature | Specification |
|---|
Model | ADN50X80-A-P-A |
Brand | AIRMIXS |
Standard | ISO 21287 (Compact Series) |
Bore Size | 50 mm |
Stroke Length | 80 mm |
Action Type | Double Acting |
Piston Rod End | Male Thread (M12x1.25) |
Position Sensing | Magnetic Piston (Standard) |
Cushioning | P: Elastic cushioning rings/plates at both ends |
Operating Pressure | 0.1 – 1.0 MPa (1.0 – 10 bar) |
Operating Temp. | -20°C to 80°C |
Port Size | G 1/8" |
Theoretical Force | Push: ~1178 N / Pull: ~1057 N (at 6 bar) |
Body Material | Anodized Aluminum Alloy |
