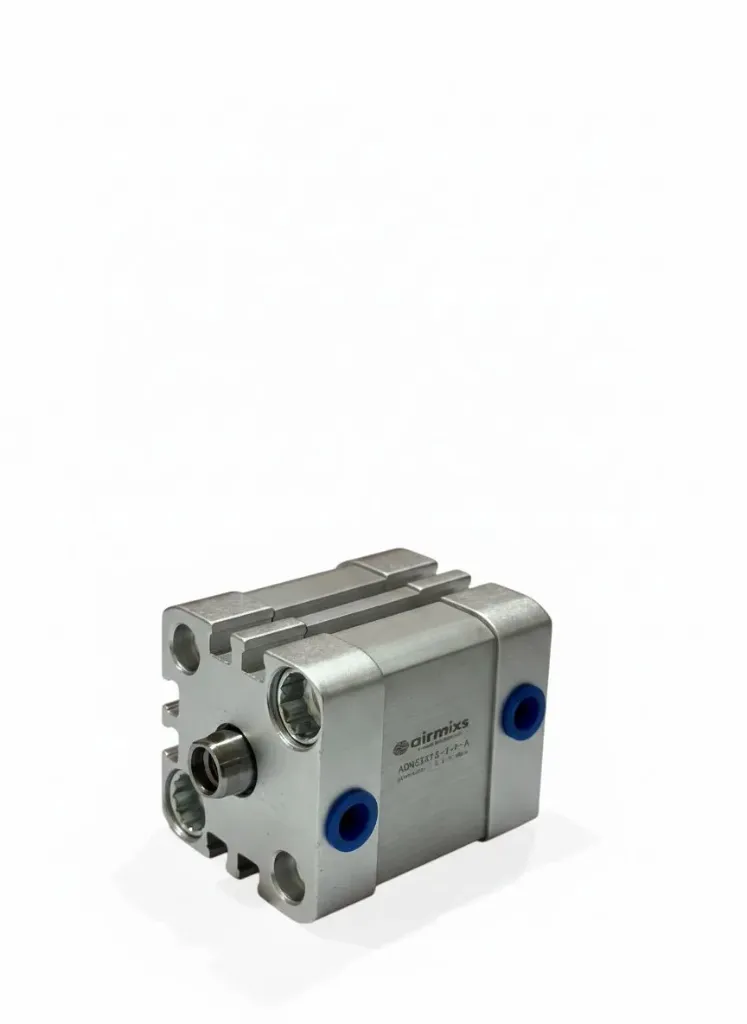

The AIRMIXS ADN32X15-I-P-A is a high-performance, double-acting compact cylinder designed to meet ISO 21287 international standards. This cylinder is engineered for automation environments where space is a critical constraint, offering a significantly shorter overall length than standard profile cylinders while maintaining robust power.
With a 32mm bore and a 15mm stroke, it is ideal for high-speed, repetitive tasks such as small-scale clamping, ejection, and precision positioning in robotic assembly lines. The "I-P-A" designation indicates a female internal threaded piston rod, elastic cushioning for impact noise reduction, and an integrated magnetic piston for position sensing.
Feature | Specification |
|---|
Model | ADN32X15-I-P-A |
Brand | AIRMIXS |
Standard | ISO 21287 |
Bore Size | 32 mm |
Stroke Length | 15 mm |
Action Type | Double Acting |
Piston Rod End | Internal Thread (Female - M8) |
Position Sensing | Magnetic Piston (Standard) |
Cushioning | P: Elastic cushioning rings/plates at both ends |
Operating Pressure | 0.1 – 1.0 MPa (1.0 – 10 bar) |
Operating Temp. | -20°C to 80°C |
Port Size | G 1/8" |
Theoretical Force | Push: ~482 N / Pull: ~415 N (at 6 bar) |
Body Material | Anodized Aluminum Alloy |
