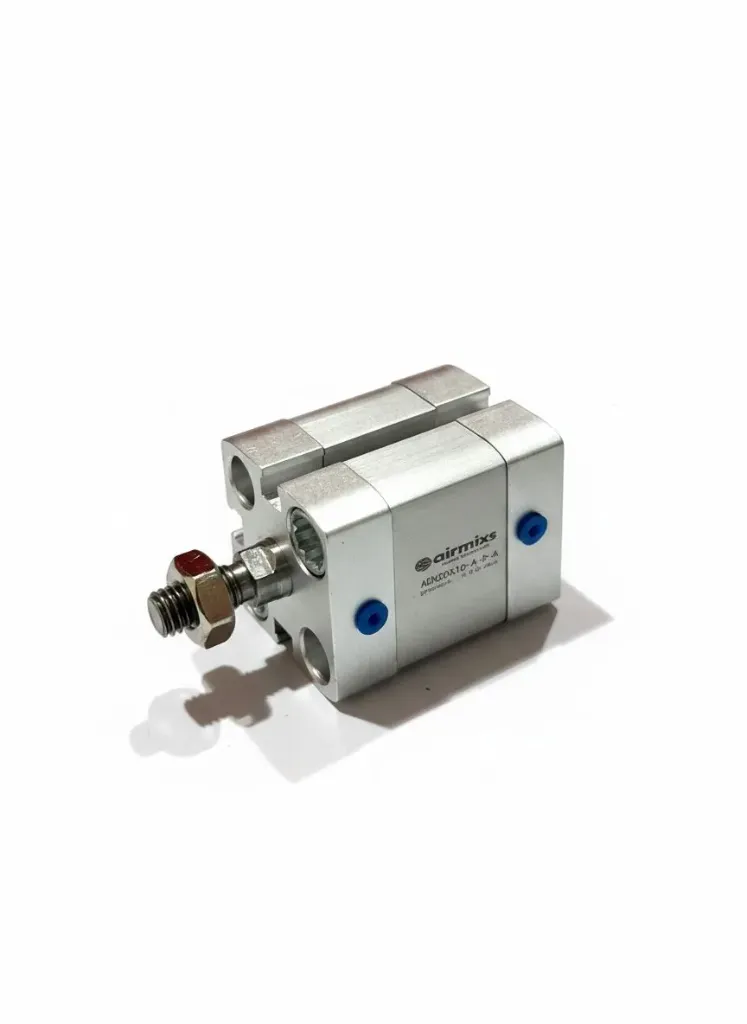

The AIRMIXS ADN20X10-A-P-A is a high-precision, double-acting compact cylinder designed to the ISO 21287 international standard. This model is engineered for high-density automation environments where short, powerful strokes are required in a minimal footprint. With a 20mm bore and a 10mm stroke, it is perfect for micro-clamping, high-speed switching, and precision electronics assembly.
The cylinder is constructed from a wrought aluminum alloy with a hard-anodized finish for exceptional wear resistance and a long service life. The "A-P-A" configuration identifies this unit as having an integrated magnetic piston for position sensing, flexible elastic cushioning at both end positions to dampen impact energy, and a male threaded piston rod for secure and versatile mounting of mechanical attachments.
Feature | Specification |
|---|
Model | ADN20X10-A-P-A |
Brand | AIRMIXS |
Standard | ISO 21287 (Compact Series) |
Bore Size | 20 mm |
Stroke Length | 10 mm |
Action Type | Double Acting |
Piston Rod End | Male Thread (M8x1.25) |
Position Sensing | Magnetic Piston (Standard) |
Cushioning | P: Elastic cushioning rings/plates at both ends |
Operating Pressure | 0.1 – 1.0 MPa (1.0 – 10 bar) |
Operating Temperature | -20°C to 80°C |
Port Size | M5 |
Body Material | Anodized Aluminum Alloy |
