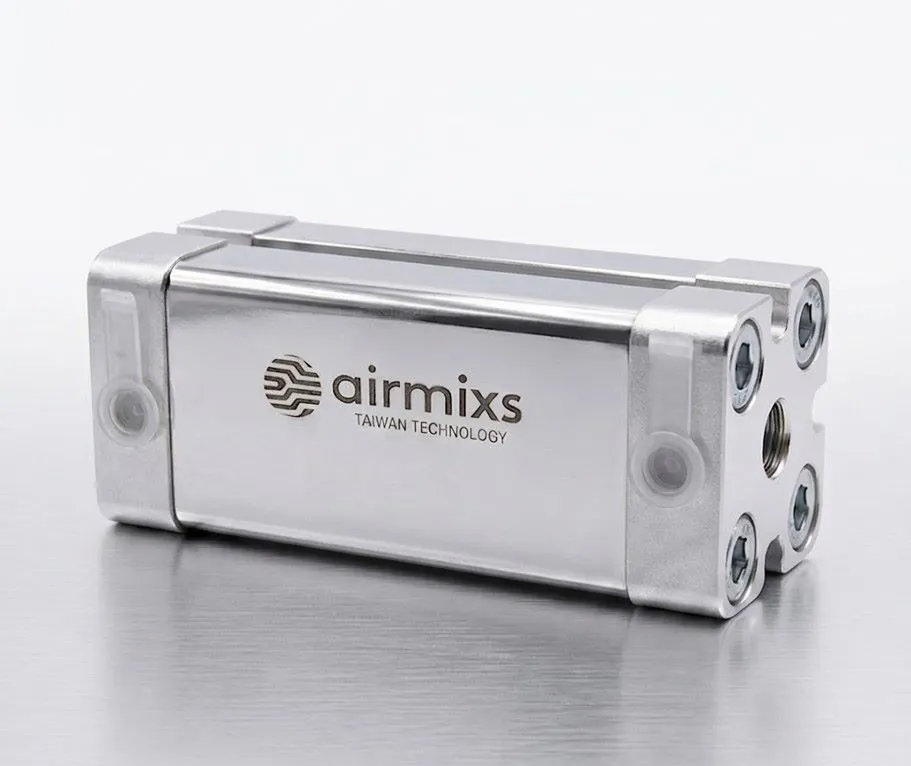

The AIRMIXS ADN-80-25-I-P-A-S is a heavy-duty double-acting compact pneumatic cylinder built according to the ISO 21287 standard. Featuring a large 80 mm bore and a short 25 mm stroke, it delivers exceptionally high output clamping and pressing force within a space-saving housing profile.
This specific configuration includes an internal female threaded piston rod (I), flexible polymer cushioning (P) at both end positions, a magnetic piston for proximity sensing (A), and an increased corrosion protection / stainless steel rod specification (S), making it highly suitable for demanding industrial environments, clamping fixtures, short-stroke pressing, and heavy automated assembly.
Specification / Feature | Value / Details |
|---|
Brand | AIRMIXS |
Part Number | ADN-80-25-I-P-A-S |
Cylinder Type | Compact Pneumatic Cylinder |
Standard | ISO 21287 |
Mode of Operation | Double-acting |
Special Feature / Variant | Increased Corrosion Protection / Stainless Steel Rod (S) |
Bore Size (Piston Diameter) | 80 mm |
Stroke Length | 25 mm |
Piston Rod End Thread | Internal Female Thread (M12) |
Operating Pressure | 0.6 ... 10.0 bar (0.06 ... 1.0 MPa) |
Operating Medium | Compressed air (filtered, lubricated or non-lubricated) |
Cushioning | Flexible polymer cushioning rings/plates at both ends (P) |
Position Detection | Magnetic piston for proximity sensor detection (A) |
Theoretical Force at 6 bar (Advance) | ~3016 N |
Theoretical Force at 6 bar (Retract) | ~2827 N |
Pneumatic Port Connection | G 1/8" |
Mounting Options | Through-hole mounting, female body threads, or accessory brackets |
Ambient Operating Temperature | -20°C to +80°C |
