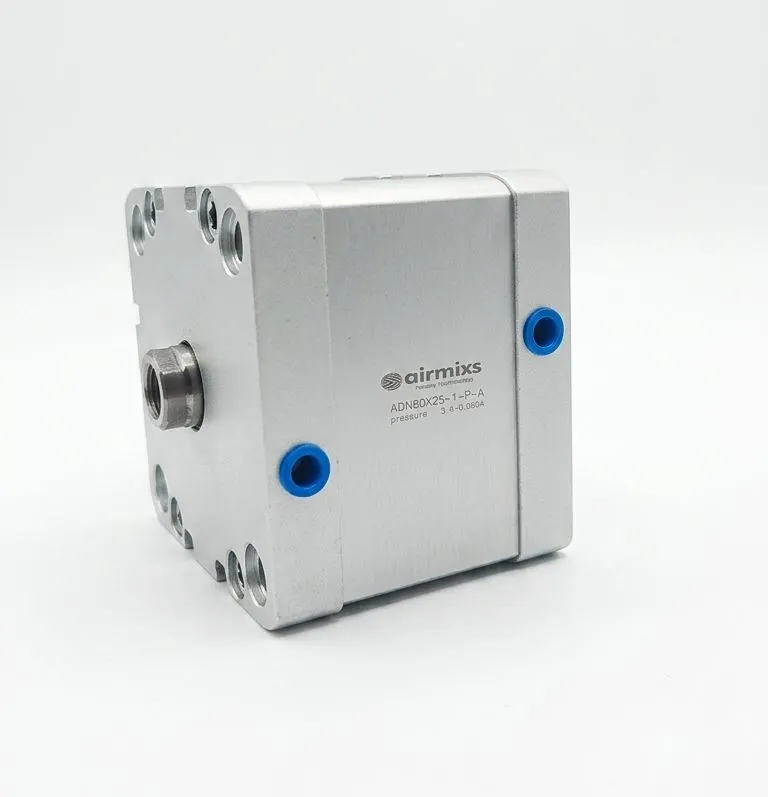

High-Force Linear Motion in a Compact Footprint The AIRMIXS ADN-80-25-I-P-A is an industrial-grade, double-acting compact pneumatic cylinder built to conform to international ISO 21287 standards. Engineered for space-restrictive automation environments, it offers up to a 50% smaller footprint compared to traditional tie-rod cylinders while delivering robust structural rigidity and massive thrust. Featuring a heavy-duty 80mm bore and a precise 25mm short-stroke, this unit is optimized for high-force clamping, lifting, and stopping applications. The internal construction includes integrated magnetic rings for seamless proximity sensor position tracking, coupled with flexible elastic cushioning at both ends to reduce impact wear and extend machinery lifetime.
Feature | Specification |
|---|
Brand | AIRMIXS |
Model Code | ADN80X25-1-P-A / ADN-80-25-I-P-A |
Cylinder Type | Compact ISO 21287 Cylinder |
Action Type | Double-Acting (Air-powered extension & retraction) |
Bore Size (Diameter) | 80 mm |
Stroke Length | 25 mm |
Piston Rod End | I:Female Internal Thread (M12 or M16 variant) |
Cushioning Type | P:Flexible elastic cushioning rings/pads at both ends |
Position Sensing | A:Integrated magnetic piston for proximity switches |
Operating Pressure | 0.06 – 1.0 MPa (0.6 – 10 Bar) |
Operating Medium | Filtered compressed air (Lubricated or Non-lubricated) |
Ambient Temperature | -20°C to +80°C |
Pneumatic Connection | G 1/8" Port |
Body Material | Anodized Wrought Aluminum Alloy |
