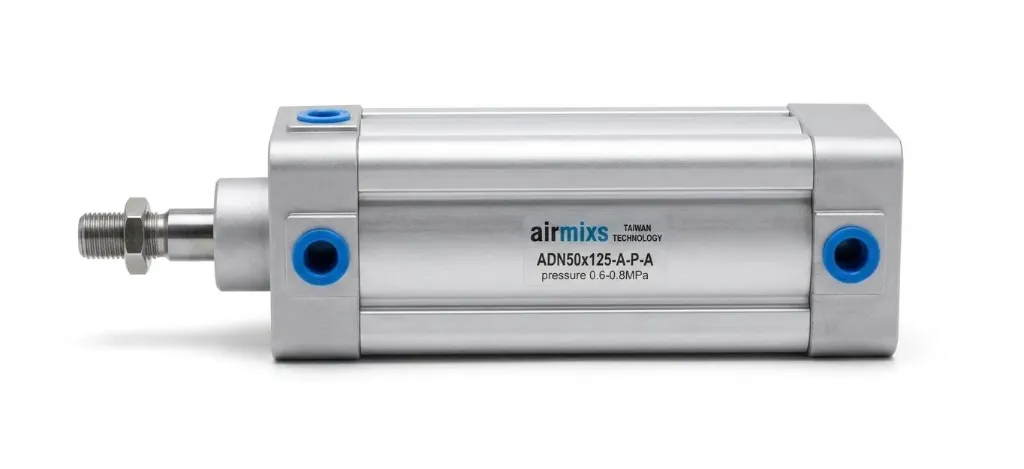

The AIRMIXS ADN50X125-A-P-Ais a high-performance, double-acting compact pneumatic cylinder designed to deliver powerful linear actuation in space-constrained industrial automation environments.Conforming to the standard ISO 21287 footprint, it features a rugged, smooth-anodized aluminum profile barrel with integrated slots on three sides for flush-mounted proximity sensor installation.
Equipped with built-in magnetic position detection and elastic cushioning rings on both ends, this space-saving cylinder ensures smooth deceleration, minimal friction, and an extended operating life. Ideal for manufacturing, packaging, assembly, and automated machine building.
Feature | Value |
|---|
Brand | AIRMIXS |
Model Code | ADN50X125-A-P-A |
Standard | Based on ISO 21287 |
Cylinder Type | Compact Piston Rod Cylinder |
Mode of Operation | Double-acting |
Piston Diameter (Bore) | 50 mm |
Stroke | 125 mm |
Piston-Rod End Connection | Male Thread |
Cushioning Type | P: Elastic cushioning rings/plates at both ends |
Position Sensing | A: Integrated magnet for proximity switch detection |
Operating Pressure Range | 0.6 bar to 10 bar (0.06 MPa to 1.0 MPa) |
Label Pressure Rating | 0.6 – 0.8 MPa (As per verified label on AIRMIXS ADN50X125-A-P-A.jpg) |
Pneumatic Connection Port | G 1/8 |
Operating Medium | Filtered and lubricated or non-lubricated compressed air |
Mounting Orientation | Any / Optional |
Mounting Type | Via through-hole, female threads, or optional accessories |
Body Material | Anodized wrought aluminum alloy profile |
Piston Rod Material | High-alloy steel |
