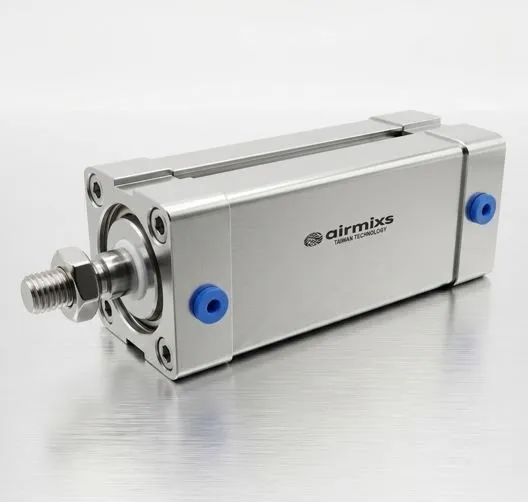

The AIRMIXS ADN-40-50-A-P-A is a double-acting compact pneumatic cylinder built in accordance with the ISO 21287 standard. Featuring a 40 mm bore and a 50 mm stroke, this cylinder offers a space-saving design—reducing installation footprint by up to 50% compared to traditional standard cylinders—without sacrificing stroke force or operational reliability.
It comes equipped with an external male threaded piston rod (M10x1.25), flexible polymer cushioning at both end positions, and an integrated magnetic piston for contactless position sensing. The robust housing makes it ideal for automated clamping, linear positioning, pushing, and lifting applications in modern manufacturing setups.
Specification / Feature | Value / Details |
|---|
Brand | AIRMIXS |
Part Number | ADN-40-50-A-P-A |
Cylinder Type | Compact Pneumatic Cylinder |
Standard | ISO 21287 |
Mode of Operation | Double-acting |
Bore Size (Piston Diameter) | 40 mm |
Stroke Length | 50 mm |
Piston Rod Thread | Male Thread (M10x1.25) |
Operating Pressure | 0.6 ... 10.0 bar (0.06 ... 1.0 MPa) |
Operating Medium | Compressed air (filtered, lubricated or non-lubricated) |
Cushioning | Flexible polymer cushioning rings/pads at both ends (P) |
Position Sensing | Integrated magnet for magnetic proximity sensors (A) |
Theoretical Force at 6 bar (Advance) | ~754 N |
Theoretical Force at 6 bar (Retract) | ~686 N |
Pneumatic Port Connection | G 1/8" |
Mounting Options | Via through-holes, female body threads, or mounting accessories |
Ambient Operating Temperature | -20°C to +80°C |
