Ultra-Compact Linear Actuation for High-Precision, Space-Critical Automation

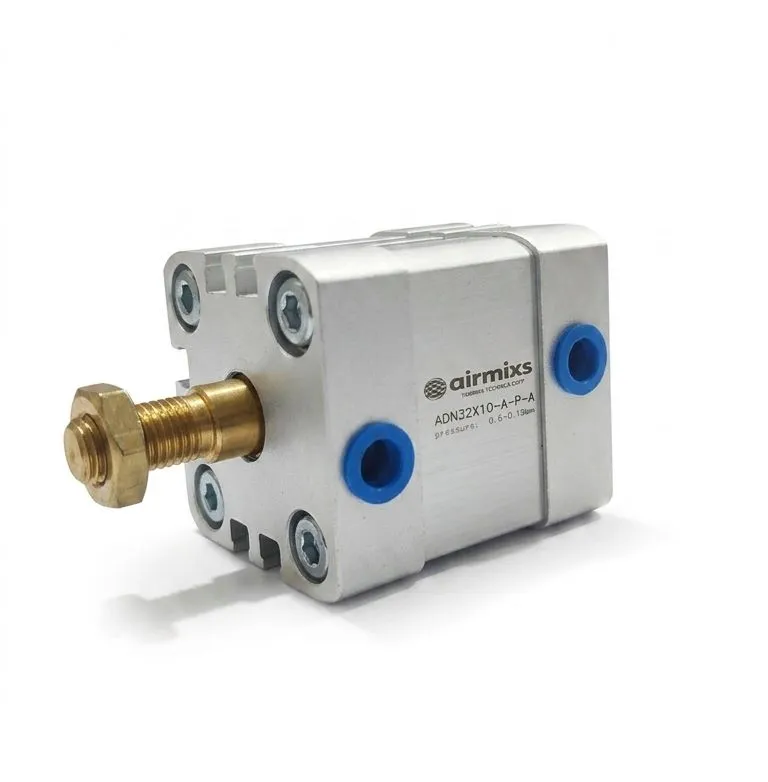

The AIRMIXS ADN-32-10-A-P-A is an industrial-grade, double-acting compact pneumatic cylinder built to conform fully with global ISO 21287 standardized mounting layouts. Meticulously designed for high-density machinery environments where space is at a premium, it provides a significantly minimized body footprint without sacrificing mechanical structural rigidity or cycle responsiveness.
Engineered with a 32mm bore diameter and an ultra-short 10mm stroke length, this compact actuator excels at delivering fast, highly targeted short-stroke linear motion. It is an ideal selection for applications requiring quick stamping, tight-tolerance clamping, miniature product ejection, and delicate material handling. This model comes standard with a robust, external male rod thread equipped with an adjustable hex locking nut for secure mechanical coupling, along with built-in magnetic tracking for immediate position feedback.
Feature | Specification |
|---|
Brand | AIRMIXS |
Model Code | ADN32X10-A-P-A |
Cylinder Type | Compact Profile Cylinder (ISO 21287 Compliant) |
Action Type | Double-Acting (Air-powered extension & retraction) |
Bore Size (Diameter) | 32 mm |
Stroke Length | 10 mm |
Piston Rod End | A:Male External Thread (includes an adjustable brass-toned hex locking nut) |
Cushioning Type | P:Flexible elastic cushioning rings/pads at both ends |
Position Sensing | A:Integrated magnetic piston for flush-mount sensor compatibility |
Operating Pressure | 0.6 – 0.8 MPa (6.0 – 8.0 Bar) |
Operating Medium | Filtered compressed air (Lubricated or Non-lubricated) |
Ambient Temperature | -20°C to +80°C |
Pneumatic Connection | M5 or G 1/8" Port Threads (Standard compact configuration) |
Body Material | High-strength Wrought Aluminum Alloy (Anodized) |
