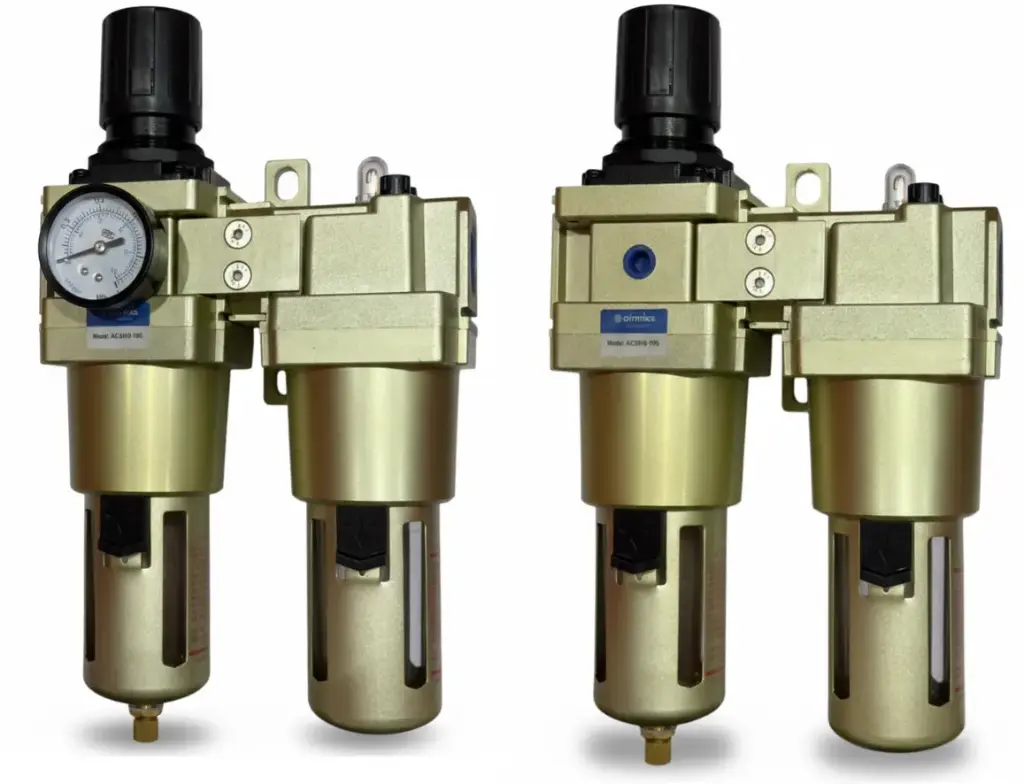

The AIRMIXS AC5010-10G provides the highest flow rate in the modular FRL lineup. It is designed to clean, regulate, and lubricate compressed air at the main air line level, ensuring that downstream systems—even those far from the compressor—receive high-quality, stabilized air.
Feature | Specification |
|---|
Brand | AIRMIXS |
Model | AC5010-10G (Modular FRL) |
Port Size (Inlet/Outlet) | 1" BSP / NPT |
Pressure Gauge Port | 1/4" |
Max. Flow Rate | Approx. 5,500 L/min(195 SCFM) |
Adjustable Pressure | 0.05 to 0.85 MPa (7 to 125 PSI) |
Max. Supply Pressure | 1.0 MPa (145 PSI) |
Filtration Rating | 25 Micron(Sintered Brass Element) |
Operating Temp. | 5°C to 60°C |
Drain Type | Manual Drain (Standard) |
