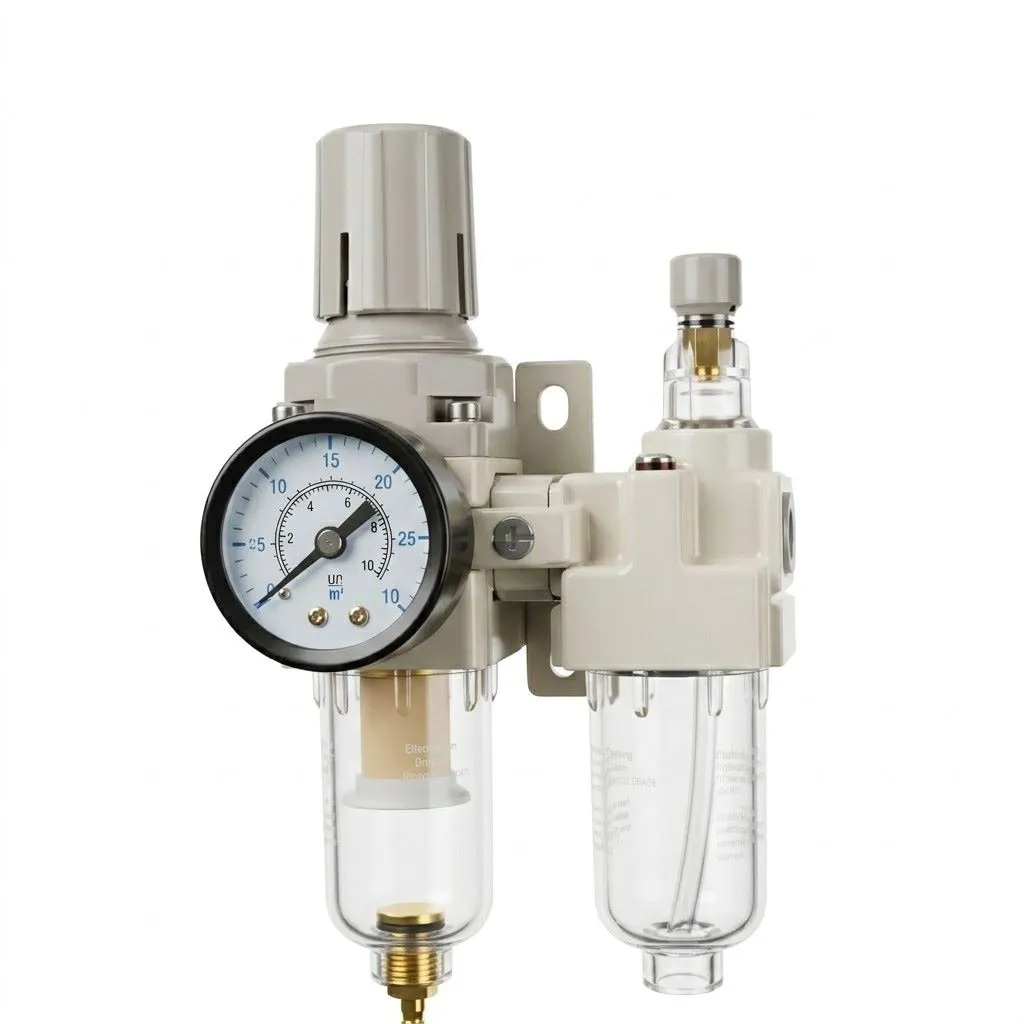

The AIRMIXS AC5010-10 FRL Unit is a high-capacity, heavy-duty air preparation assembly designed for main compressed air lines and large-scale industrial pneumatic networks. Featuring full 1" port connections, this two-piece modular system combines a high-efficiency piggyback filter-regulator with a micro-fog lubricator to deliver clean, precisely pressure-regulated, and lubricated air to high-demand equipment, heavy cylinders, and automated production machinery.
Built with an extra-large die-cast aluminum body and high-impact polycarbonate bowls encased in heavy steel protective guards, it provides maximum reliability under rigorous factory conditions. The pressure regulator features an ergonomic press-to-lock adjustment knob to prevent setting drift caused by heavy machine vibration, while the micro-drip lubricator allows precise oil metering proportional to air flow.
Feature / Specification | Detail |
|---|
Brand | AIRMIXS |
Model | AC5010-10 |
Component Type | Heavy-Duty Air Preparation Unit (F/R + L Combo) |
Port Size | G 1" (BSP) / NPT 1" |
Gauge Port Size | G 1/4" |
Filtration Rating | 40 µm (Standard) / 5 µm (Optional) |
Max Supply Pressure | 1.0 MPa (10 Bar / 145 PSI) |
Proof Pressure | 1.5 MPa (15 Bar / 215 PSI) |
Pressure Regulation Range | 0.05 – 0.85 MPa (0.5 – 8.5 Bar / 7 – 123 PSI) |
Nominal Flow Rate | ~4,000 – 5,000 L/min |
Drain Type | Manual Drain / Semi-Auto Drain / Auto-Drain (Optional) |
Recommended Lubricant | ISO VG32 / Turbine No. 1 Oil |
Body Material | Heavy-Duty Die-Cast Aluminum |
Bowl & Guard Material | Polycarbonate with Protective Steel Guard |
Working Temperature Range | 5°C to 60°C (41°F to 140°F) |
Fluid Medium | Compressed Air |
